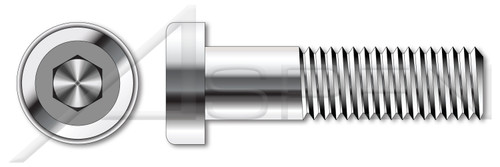

M10-1.5 X 70mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A4 Stainless Steel

M10-1.5 X 70mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A4 Stainless Steel

PART NUMBER:
ME493-1015X70-000050
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Diameter (Minimum): 9.78mm
  • Diameter (Maximum): 10mm
  • Length (Nominal): 70mm
  • Thread Length (Nominal): 26mm
  • Drive Recess Size: 7mm
  • Drive Recess Width (Minimum): 7.03mm
  • Drive Recess Width (Maximum): 7.18mm
  • Drive Recess Depth: 4.5mm
  • Drive Recess Depth (Minimum): 4.35mm
  • Drive Recess Depth (Maximum): 4.65mm
  • Head Diameter: 16mm
  • Head Diameter (Minimum): 15.73mm
  • Head Diameter (Maximum): 16mm
  • Head Height, Overall: 6.5mm
  • Head Height, Overall (Minimum): 6.28mm
  • Head Height, Overall (Maximum): 6.5mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559669229
Drive Style:
Hex Socket Drive
Diameter (Dimension):
10mm
Diameter (Minimum):
9.78mm
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Diameter (Maximum):
10mm
Thread Pitch:
1.5
Length (Nominal):
70mm
Thread Length:
26mm
Head Style:
Low Cylindrical Head
Brand:
Aspen Fasteners
Material:
Stainless Steel
Recess Size:
7mm
Head Diameter:
16mm
Head Height, Overall (Maximum):
6.5mm
Head Height, Overall (Minimum):
6.28mm
Head Height, Overall:
6.5mm
Head Diameter (Maximum):
16mm
Head Diameter (Minimum):
15.73mm
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Diameter (Nominal):
M10
Material Grade:
A4 Stainless Steel
Standards and Specifications:
DIN 7984
Coating:
Uncoated
Thread Direction:
Right-Hand Thread
POS:
ME493-1015X70-000050
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME493-1015X70.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product51/ME493-1015X70.PDF
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME493-1015X70
Drive Recess Width (Minimum):
7.03mm
Drive Recess Depth (Maximum):
4.65mm
Drive Recess Depth:
4.5mm
Drive Recess Width (Maximum):
7.18mm
Thread Length (Nominal):
26mm
Drive Recess Depth (Minimum):
4.35mm
Origin:
Origin Undefined
Drive Recess Size:
7mm
