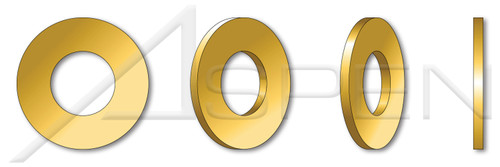

- SAE flat washer dimensions were developed by the Society of Automotive Engineers.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): 1-1/4"
- Inside Diameter (Nominal): 1-3/8"
- Inside Diameter (Minimum): 1.368"
- Inside Diameter (Maximum): 1.405"
- Outside Diameter (Nominal): 2-1/2"
- Outside Diameter (Minimum): 2.493"
- Outside Diameter (Maximum): 2.53"
- Thickness (Nominal): 5/32"
- Thickness (Minimum): 0.136"
- Thickness (Maximum): 0.177"
- Product Class: Washers
- Order: Flat Washers
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Form and Design: SAE Flat Washer Dimensions
- Material: Steel
- Material Processes: Through-Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Yellow
- Hardness Rating: Rockwell C38-C45
- Standards and Specifications: ASME B18.21.1-2009
Product UPC Code:
698435822641
- Coating:
- Zinc Plated and Baked
- Material Processes:
- Through-Hardened
- Inside Diameter (Maximum):
- 1.405"
- Material:
- Steel
- Form and Design:
- SAE Flat Washer Dimensions
- Thickness (Nominal):
- 5/32"
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Standard Flat Washers
- Order:
- Flat Washers
- Inside Diameter (Minimum):
- 1.368"
- Inside Diameter (Nominal):
- 1-3/8"
- Diameter (Nominal):
- 1-1/4"
- Standards and Specifications:
- ASME B18.21.1-2009
- Outside Diameter (Nominal):
- 2-1/2"
- Thickness (Maximum):
- 0.177"
- Hardness Rating:
- Rockwell C38-C45
- Product Class:
- Washers
- Shop by Material:
- Steel
- Thickness (Minimum):
- 0.136"
- Outside Diameter (Maximum):
- 2.53"
- Outside Diameter (Minimum):
- 2.493"
- Shop by System of Measurement:
- Inch
- Coating Color:
- Yellow
- POS:
- WA017-114-000120
