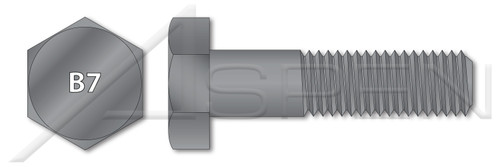

- Heavy hex bolts have heads that are wider across flats and higher than standard hex bolts.
- B7 is a heat-treated chromium-molybdenum alloy steel with a minimum tensile strength of 125 ksi.
- The ASTM A193 specification covers high tensile alloy steel and stainless steel fasteners.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/2"
- Thread Pitch: 13
- Diameter (Dimension): 0.5"
- Length (Nominal): 4"
- Thread Length (Nominal): 1.25"
- Across Flats (Basic): 7/8"
- Across Flats (Minimum): 0.850"
- Across Flats (Maximum): 0.875"
- Head Height, Overall: 11/32"
- Head Height, Overall (Minimum): 0.302"
- Head Height, Overall (Maximum): 0.364"
PRODUCT ATTRIBUTES- Category: Hex Bolts, Heavy
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade B7 Alloy Steel
- Material Processes: Heat Treated
- Coating: Uncoated
- Standards and Specifications: ASTM A193
Product UPC Code:
692559970547
- Across Flats (Maximum):
- 0.875"
- Diameter (Nominal):
- 1/2"
- Order:
- Machine Thread Fasteners
- Head Style:
- Hex Head
- System of Measurement:
- Inch
- Across Flats (Minimum):
- 0.850"
- Across Flats (Basic):
- 7/8"
- Thread Direction:
- Right-Hand Thread
- Material Processes:
- Heat Treated
- Length (Nominal):
- 4"
- Thread Length (Nominal):
- 1.25"
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Inch
- Head Height, Overall (Maximum):
- 0.364"
- Standards and Specifications:
- ASTM A193
- Product Class:
- Externally Threaded Fasteners
- Coating:
- Uncoated
- Category:
- Hex Bolts, Heavy
- Brand:
- Aspen Fasteners
- Material Grade:
- Grade B7 Alloy Steel
- Head Height, Overall:
- 11/32"
- Material:
- Steel
- Diameter (Dimension):
- 0.5"
- Drive Style:
- External Hex Drive
- Thread Pitch:
- 13
- Head Height, Overall (Minimum):
- 0.302"
- POS:
- BO062-1213X4-000160
