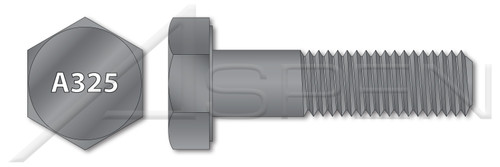

1"-8 X 5" Heavy Structural Hex Bolts, ASTM A325 Type 1, Steel, Made in U.S.A.

1"-8 X 5" Heavy Structural Hex Bolts, ASTM A325 Type 1, Steel, Made in U.S.A.

PART NUMBER:
BO040-18X5
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Heavy hex structural bolts are designed to withstand the load of a steel-to-steel connection.
  • Commonly used in structural steel joint in construction and building applications.
  • The washer face under the head provides a precision bearing surface.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1"
  • Thread Pitch: 8
  • Diameter (Dimension): 1"
  • Diameter (Minimum): 0.976"
  • Diameter (Maximum): 1.022"
  • Length (Nominal): 5"
  • Length (Minimum): 4.81"
  • Length (Maximum): 5"
  • Thread Length (Nominal): 1.75"
  • Across Flats (Basic): 1-5/8"
  • Across Flats (Minimum): 1.575"
  • Across Flats (Maximum): 1.625"
  • Head Height, Overall: 39/64"
  • Head Height, Overall (Minimum): 0.591"
  • Head Height, Overall (Maximum): 0.627"
PRODUCT ATTRIBUTES
  • Category: Hex Bolts, Heavy Structural
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Drive Style: External Hex Drive
  • Pitch: Coarse Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: ASTM A325 Type 1
  • Material Processes: Heat Treated
  • Coating: Uncoated
  • Hardness Rating: Rockwell C24-C35
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.2.6
Head Height, Overall:
39/64"
Length (Maximum):
5"
Material Processes:
Heat Treated
Across Flats (Basic):
1-5/8"
Length (Nominal):
5"
Material Grade:
ASTM A325 Type 1
Head Height, Overall (Minimum):
0.591"
Diameter (Maximum):
1.022"
Thread Length (Nominal):
1.75"
Head Style:
Hex Head
Thread Pitch:
8
Coating:
Uncoated
Head Style Detail:
Washer Face
Diameter (Minimum):
0.976"
Head Height, Overall (Maximum):
0.627"
Order:
Machine Thread Fasteners
Length (Minimum):
4.81"
Material:
Steel
Diameter (Nominal):
1"
Shop by Material:
Steel
Diameter (Dimension):
1"
Drive Style:
External Hex Drive
Pitch:
Coarse Thread
Product Class:
Externally Threaded Fasteners
Category:
Hex Bolts, Heavy Structural
Origin:
Made in U.S.A.
Point:
Chamfered Point
Thread Direction:
Right-Hand Thread
Brand:
Aspen Fasteners
Across Flats (Maximum):
1.625"
Hardness Rating:
Rockwell C24-C35
Shop by System of Measurement:
Inch
System of Measurement:
Inch
Thread Length:
Part Thread
Across Flats (Minimum):
1.575"
Standards and Specifications:
ASME B18.2.6
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/BO040-18X5
POS:
BO040-18X5-000035,BO040-18X5-000130
  • Description
    • Heavy hex structural bolts are designed to withstand the load of a steel-to-steel connection.
    • Commonly used in structural steel joint in construction and building applications.
    • The washer face under the head provides a precision bearing surface.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1"
    • Thread Pitch: 8
    • Diameter (Dimension): 1"
    • Diameter (Minimum): 0.976"
    • Diameter (Maximum): 1.022"
    • Length (Nominal): 5"
    • Length (Minimum): 4.81"
    • Length (Maximum): 5"
    • Thread Length (Nominal): 1.75"
    • Across Flats (Basic): 1-5/8"
    • Across Flats (Minimum): 1.575"
    • Across Flats (Maximum): 1.625"
    • Head Height, Overall: 39/64"
    • Head Height, Overall (Minimum): 0.591"
    • Head Height, Overall (Maximum): 0.627"
    PRODUCT ATTRIBUTES
    • Category: Hex Bolts, Heavy Structural
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Drive Style: External Hex Drive
    • Pitch: Coarse Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: ASTM A325 Type 1
    • Material Processes: Heat Treated
    • Coating: Uncoated
    • Hardness Rating: Rockwell C24-C35
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.2.6
