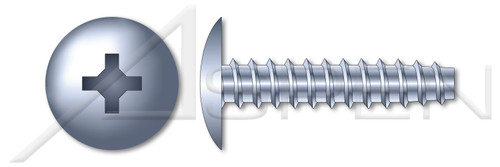

#10-14 X 1/2" Trilobe Thread Rolling Screws for Plastics, Truss Phillips Drive, 48-2 Thread, Steel, Zinc Plated and Waxed

#10-14 X 1/2" Trilobe Thread Rolling Screws for Plastics, Truss Phillips Drive, 48-2 Thread, Steel, Zinc Plated and Waxed

PART NUMBER:
SC207-10X12
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • These thread rolling screws are fully compatible generic alternatives to the branded screws.
  • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #10
  • Thread Pitch: 14
  • Diameter (Dimension): 0.212"
  • Length (Nominal): 1/2"
PRODUCT ATTRIBUTES
  • Category: Thread Rolling Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: Trilobe Triangular Body with Threads for Plastics
  • Head Style: Truss Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Threading: 48-2 Double-Lead Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated and Waxed
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Origin: Origin Undefined
  • Standards and Specifications: ASME B18.6.3
Standards and Specifications:
ASME B18.6.3
Coating Color:
Clear
Thread Pitch:
14
Product Class:
Externally Threaded Fasteners
Form and Design:
Trilobe Triangular Body with Threads for Plastics
Head Style:
Truss Head
Diameter (Nominal):
#10
Thread Length:
Full Thread
Length (Nominal):
1/2"
Shop by System of Measurement:
Inch
Brand:
Aspen Fasteners
Drive Style:
Cruciform Recess Drive
Material:
Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC207-10X12
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Diameter (Dimension):
0.212"
Threading:
48-2 Double-Lead Thread
Category:
Thread Rolling Screws
Thread Direction:
Right-Hand Thread
Order:
Thread Cutting Fasteners
Drive Detail:
Phillips Type H
Material Processes:
Case Hardened
Shop by Material:
Steel
Coating:
Zinc Plated and Waxed
System of Measurement:
Inch
Origin:
Origin Undefined
POS:
SC207-10X12-006000,SC207-10X12-010000
  • Description
    • These thread rolling screws are fully compatible generic alternatives to the branded screws.
    • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #10
    • Thread Pitch: 14
    • Diameter (Dimension): 0.212"
    • Length (Nominal): 1/2"
    PRODUCT ATTRIBUTES
    • Category: Thread Rolling Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: Trilobe Triangular Body with Threads for Plastics
    • Head Style: Truss Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Threading: 48-2 Double-Lead Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated and Waxed
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Origin: Origin Undefined
    • Standards and Specifications: ASME B18.6.3
