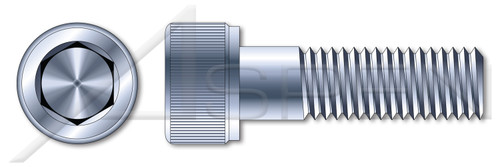

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- Diameter (Nominal): #10
- Thread Pitch: 24
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 1/4"
- Thread Length (Nominal): 0.25"
- Drive Recess Size: 5/32"
- Drive Recess Width: 0.156"
- Drive Recess Depth: 0.09"
- Head Diameter (Minimum): 0.298"
- Head Diameter (Maximum): 0.312"
- Head Height, Overall (Minimum): 0.185"
- Head Height, Overall (Maximum): 0.19"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.3
- Material:
- Steel
- Coating:
- Zinc Plated
- Material Processes:
- Heat Treated
- Shop by Application:
- Socket Products
- Head Style:
- Cylindrical Head
- Thread Direction:
- Right-Hand Thread
- Material Grade:
- Alloy Steel
- Length (Nominal):
- 1/4"
- Category:
- Socket Head Cap Screws
- Drive Style:
- Hex Socket Drive
- Thread Pitch:
- 24
- Order:
- Machine Thread Fasteners
- Standards and Specifications:
- ASME B18.3
- Coating Color:
- Clear
- Shop by Material:
- Steel
- Diameter (Nominal):
- #10
- Shop by System of Measurement:
- Inch
- Origin:
- Made in U.S.A.
- Brand:
- Aspen Fasteners
- Product Class:
- Externally Threaded Fasteners
- System of Measurement:
- Inch
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO005-1024X14
- POS:
- SO005-1024X14-000100,SO005-1024X14-000500
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product59/SO005-1024X14.PDF
- Drive Recess Size:
- 5/32"
- Head Diameter (Minimum):
- 0.298"
- Diameter (Maximum):
- 0.19"
- Head Height, Overall (Maximum):
- 0.19"
- Thread Length (Nominal):
- 0.25"
- Head Height, Overall (Minimum):
- 0.185"
- Head Diameter (Maximum):
- 0.312"
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SO005-1024X14.zip
- Drive Recess Depth:
- 0.09"
- Drive Recess Width:
- 0.156"
- Diameter (Dimension):
- 0.19"
- Diameter (Minimum):
- 0.184"
-
Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- Diameter (Nominal): #10
- Thread Pitch: 24
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 1/4"
- Thread Length (Nominal): 0.25"
- Drive Recess Size: 5/32"
- Drive Recess Width: 0.156"
- Drive Recess Depth: 0.09"
- Head Diameter (Minimum): 0.298"
- Head Diameter (Maximum): 0.312"
- Head Height, Overall (Minimum): 0.185"
- Head Height, Overall (Maximum): 0.19"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.3
-
3D Product View
