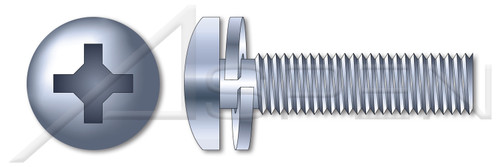

#10-24 X 5/8" SEMS Split Lock Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

#10-24 X 5/8" SEMS Split Lock Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

PART NUMBER:
SC235-1024X58-004000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #10
  • Thread Pitch: 24
  • Diameter (Dimension): 0.190"
  • Length (Nominal): 5/8"
  • Thread Length (Nominal): 0.625"
  • Inside Diameter (Minimum): 0.173"
  • Inside Diameter (Maximum): 0.179"
  • Outside Diameter (Minimum): 0.359"
  • Outside Diameter (Maximum): 0.373"
  • Thickness (Nominal): 0.047"
  • Radial Width: 0.093"
  • Drive Recess Size: #2
  • Drive Recess Width: 0.192"
  • Drive Recess Depth (Minimum): 0.089"
  • Drive Recess Depth (Maximum): 0.113"
  • Head Diameter (Minimum): 0.357"
  • Head Diameter (Maximum): 0.373"
  • Head Height, Overall (Minimum): 0.122"
  • Head Height, Overall (Maximum): 0.133"
  • Head Radius: 0.020"
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
  • Head Style: Pan Head
  • Head Style Detail: Free-Spinning Split Lock Washer
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Coating: Zinc Plated and Baked
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: ASME B18.13a and SAE J82
Product UPC Code:
698435376144
Product Class:
Externally Threaded Fasteners
Coating Color:
Clear
Standards and Specifications:
ASME B18.13a and SAE J82
Diameter (Nominal):
#10
Order:
Machine Thread Fasteners
Category:
Machine Screws
System of Measurement:
Inch
Brand:
Aspen Fasteners
Form and Design:
SEMS Screws Pre-Assembled with a Captive Lock Washer
Head Style:
Pan Head
Head Style Detail:
Free-Spinning Split Lock Washer
Drive Style:
Cruciform Recess Drive
Drive Detail:
Phillips Type H
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Steel
Coating:
Zinc Plated and Baked
Diameter (Dimension):
0.190"
Thread Pitch:
24
Length (Nominal):
5/8"
Shop by System of Measurement:
Inch
Shop by Material:
Steel
POS:
SC235-1024X58-004000
Brand:
Aspen Fasteners(r)
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC235-1024X58
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product44/SC235-1024X58.PDF
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/SC235-1024X58.zip
Origin:
Origin Undefined
Head Diameter (Minimum):
0.357"
Outside Diameter (Minimum):
0.359"
Inside Diameter (Maximum):
0.179"
Thread Length (Nominal):
0.625"
Head Diameter (Maximum):
0.373"
Thickness (Nominal):
0.047"
Drive Recess Size:
#2
Outside Diameter (Maximum):
0.373"
Drive Recess Depth (Maximum):
0.113"
Head Height, Overall (Maximum):
0.133"
Drive Recess Depth (Minimum):
0.089"
Head Height, Overall (Minimum):
0.122"
Inside Diameter (Minimum):
0.173"
Drive Recess Width:
0.192"
Print
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #10
    • Thread Pitch: 24
    • Diameter (Dimension): 0.190"
    • Length (Nominal): 5/8"
    • Thread Length (Nominal): 0.625"
    • Inside Diameter (Minimum): 0.173"
    • Inside Diameter (Maximum): 0.179"
    • Outside Diameter (Minimum): 0.359"
    • Outside Diameter (Maximum): 0.373"
    • Thickness (Nominal): 0.047"
    • Radial Width: 0.093"
    • Drive Recess Size: #2
    • Drive Recess Width: 0.192"
    • Drive Recess Depth (Minimum): 0.089"
    • Drive Recess Depth (Maximum): 0.113"
    • Head Diameter (Minimum): 0.357"
    • Head Diameter (Maximum): 0.373"
    • Head Height, Overall (Minimum): 0.122"
    • Head Height, Overall (Maximum): 0.133"
    • Head Radius: 0.020"
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
    • Head Style: Pan Head
    • Head Style Detail: Free-Spinning Split Lock Washer
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Coating: Zinc Plated and Baked
    • Coating Color: Clear
    • Origin: Origin Undefined
    • Standards and Specifications: ASME B18.13a and SAE J82
