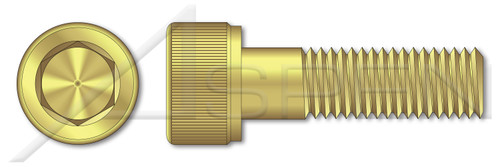

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 1-1/4"
- Thread Length (Nominal): 0.87"
- Drive Recess Size: 5/32"
- Drive Recess Width: 0.156"
- Drive Recess Depth: 0.09"
- Head Diameter: 0.312"
- Head Diameter (Minimum): 0.298"
- Head Diameter (Maximum): 0.312"
- Head Height, Overall: 0.19"
- Head Height, Overall (Minimum): 0.185"
- Head Height, Overall (Maximum): 0.19"
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Brass
- Coating: Uncoated
- Origin: Origin Undefined
