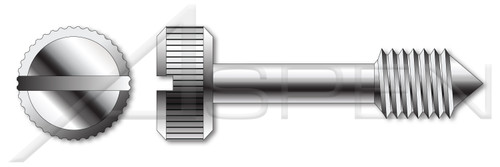

#10-32 X 1-3/4", Head Dia=7/16" Captive Panel Screws, Style 1, Knurled Head, Slotted Drive, Cone Point, Stainless Steel, Made in U.S.A.

#10-32 X 1-3/4", Head Dia=7/16" Captive Panel Screws, Style 1, Knurled Head, Slotted Drive, Cone Point, Stainless Steel, Made in U.S.A.

PART NUMBER:
FC042-1032X134X716
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #10
  • Thread Pitch: 32
  • Diameter (Dimension): 0.1875"
  • Length (Nominal): 1-3/4"
  • Thread Length (Nominal): 0.375"
  • Thread Length (Minimum): 0.36"
  • Thread Length (Maximum): 0.39"
  • Head Diameter: 7/16"
  • Head Diameter (Minimum): 0.438"
  • Head Diameter (Maximum): 0.453"
  • Head Height, Overall: 0.25"
  • Head Height, Overall (Minimum): 0.24"
  • Head Height, Overall (Maximum): 0.26"
  • Shoulder Diameter: 0.13"
  • Shoulder Diameter (Minimum): 0.125"
  • Shoulder Diameter (Maximum): 0.135"
  • Shoulder Length: 1.375"
  • Shoulder Length (Minimum): 1.365"
  • Shoulder Length (Maximum): 1.385"
  • Point Angle (Degrees): 82
  • Slot Depth (Nominal): 0.063"
  • Slot Depth (Minimum): 0.063"
  • Slot Depth (Maximum): 0.073"
  • Slot Width (Nominal): 0.063"
  • Slot Width (Minimum): 0.063"
  • Slot Width (Maximum): 0.068"
PRODUCT ATTRIBUTES
  • Category: Captive Panel Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: Style 1
  • Head Style: Knurled Head
  • Drive Style: Slotted Drive
  • Thread Direction: Right-Hand Thread
  • Point: Cone Point
  • Material: Stainless Steel
  • Material Grade: Standard Commercial Grade
  • Coating: Uncoated
  • Origin: Made in U.S.A.
System of Measurement:
Inch
Origin:
Made in U.S.A.
Thread Length (Nominal):
0.375"
Brand:
Aspen Fasteners
Material:
Stainless Steel
Head Diameter (Minimum):
0.438"
Drive Style:
Slotted Drive
Head Diameter (Maximum):
0.453"
Slot Width (Minimum):
0.063"
Shop by System of Measurement:
Inch
Head Height, Overall (Minimum):
0.24"
Diameter (Nominal):
#10
Thread Length (Minimum):
0.36"
Shop by Application:
Electronic Fasteners
Head Diameter:
7/16"
Head Height, Overall (Maximum):
0.26"
Category:
Captive Panel Screws
Length (Nominal):
1-3/4"
Slot Depth (Maximum):
0.073"
Thread Pitch:
32
Head Height, Overall:
0.25"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product98/FC042-1032X134X716.PDF
Point:
Cone Point
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/FC042-1032X134X716.zip
Coating:
Uncoated
Shop by Material:
Stainless Steel
Shoulder Diameter:
0.13"
Thread Length (Maximum):
0.39"
Shoulder Diameter (Maximum):
1.385"
Slot Width (Maximum):
0.068"
Diameter (Dimension):
0.1875"
Slot Depth (Nominal):
0.063"
Slot Width (Nominal):
0.063"
Thread Direction:
Right-Hand Thread
Form and Design:
Style 1
Slot Depth (Minimum):
0.063"
Point Angle (Degrees):
82
Head Style:
Knurled Head
Shoulder Length:
1.375"
Order:
Machine Thread Fasteners
Shoulder Diameter (Minimum):
1.365"
Product Class:
Externally Threaded Fasteners
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/FC042-1032X134X716
Material Grade:
Standard Commercial Grade
Shoulder Length (Maximum):
1.385"
Shoulder Length (Minimum):
1.365"
POS:
FC042-1032X134X716-00200,FC042-1032X134X716-00010,FC042-1032X134X716-00050,FC042-1032X134X716-00020,FC042-1032X134X716-00100
Print
  • Description
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #10
    • Thread Pitch: 32
    • Diameter (Dimension): 0.1875"
    • Length (Nominal): 1-3/4"
    • Thread Length (Nominal): 0.375"
    • Thread Length (Minimum): 0.36"
    • Thread Length (Maximum): 0.39"
    • Head Diameter: 7/16"
    • Head Diameter (Minimum): 0.438"
    • Head Diameter (Maximum): 0.453"
    • Head Height, Overall: 0.25"
    • Head Height, Overall (Minimum): 0.24"
    • Head Height, Overall (Maximum): 0.26"
    • Shoulder Diameter: 0.13"
    • Shoulder Diameter (Minimum): 0.125"
    • Shoulder Diameter (Maximum): 0.135"
    • Shoulder Length: 1.375"
    • Shoulder Length (Minimum): 1.365"
    • Shoulder Length (Maximum): 1.385"
    • Point Angle (Degrees): 82
    • Slot Depth (Nominal): 0.063"
    • Slot Depth (Minimum): 0.063"
    • Slot Depth (Maximum): 0.073"
    • Slot Width (Nominal): 0.063"
    • Slot Width (Minimum): 0.063"
    • Slot Width (Maximum): 0.068"
    PRODUCT ATTRIBUTES
    • Category: Captive Panel Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: Style 1
    • Head Style: Knurled Head
    • Drive Style: Slotted Drive
    • Thread Direction: Right-Hand Thread
    • Point: Cone Point
    • Material: Stainless Steel
    • Material Grade: Standard Commercial Grade
    • Coating: Uncoated
    • Origin: Made in U.S.A.
  • 3D Product View

Contact us for availability information on part number FC042-1032X134X716. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
