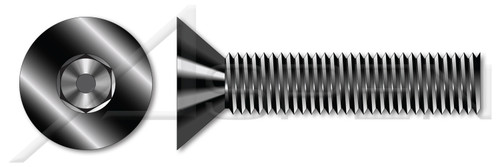

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 1"
- Thread Length (Nominal): 1"
- Drive Recess Size: 1/8"
- Drive Recess Width: 0.125"
- Drive Recess Depth: 0.087"
- Head Diameter (Minimum): 0.359"
- Head Diameter (Maximum): 0.411"
- Head Height, Overall: 0.127"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Hex Socket Drive
- Pitch: Fine Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.3
- Order:
- Machine Thread Fasteners
- Material:
- Steel
- Material Grade:
- Alloy Steel
- Material Processes:
- Heat Treated
- Coating:
- Oxidized
- Coating Color:
- Black
- Origin:
- Made in U.S.A.
- Standards and Specifications:
- ASME B18.3
- Diameter (Nominal):
- #10
- Head Style:
- Flat Countersunk Head
- Head Style Detail:
- 82 Degree Countersink
- Drive Style:
- Hex Socket Drive
- Pitch:
- Fine Thread
- Thread Direction:
- Right-Hand Thread
- Category:
- Socket Head Cap Screws
- Thread Pitch:
- 32
- System of Measurement:
- Inch
- Brand:
- Aspen Fasteners
- Shop by System of Measurement:
- Inch
- Shop by Material:
- Steel
- Shop by Application:
- Socket Products
- Length (Nominal):
- 1"
- Product Class:
- Externally Threaded Fasteners
- POS:
- SO011-1032X1-001000,SO011-1032X1-000100,SO011-1032X1-000300
- Drive Recess Size:
- 1/8"
- Drive Recess Depth:
- 0.087"
- Head Diameter (Maximum):
- 0.411"
- Diameter (Minimum):
- 0.184"
- Head Height, Overall:
- 0.127"
- Thread Length (Nominal):
- 1"
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SO011-1032X1.zip
- Head Diameter (Minimum):
- 0.359"
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO011-1032X1
- Diameter (Dimension):
- 0.19"
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product59/SO011-1032X1.PDF
- Diameter (Maximum):
- 0.19"
- Drive Recess Width:
- 0.125"
-
Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 1"
- Thread Length (Nominal): 1"
- Drive Recess Size: 1/8"
- Drive Recess Width: 0.125"
- Drive Recess Depth: 0.087"
- Head Diameter (Minimum): 0.359"
- Head Diameter (Maximum): 0.411"
- Head Height, Overall: 0.127"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Hex Socket Drive
- Pitch: Fine Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.3
-
