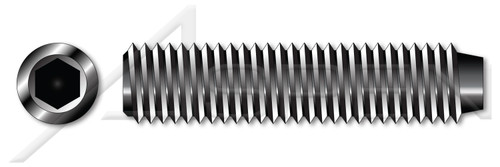

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- Set screws are designed to be used under compressive stress only.
- In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.1875"
- Length (Nominal): 1"
- Thread Length (Nominal): 1"
- Drive Recess Size: 3/32"
- Drive Recess Depth: 0.1"
- Point Width (Minimum): 0.088"
- Point Width (Maximum): 0.102"
- Point Angle (Degrees): 118
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Hex Socket Drive
- Pitch: UNF Fine Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Cup Point
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Uncoated
- Hardness Rating: Rockwell C45-C53
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.3
