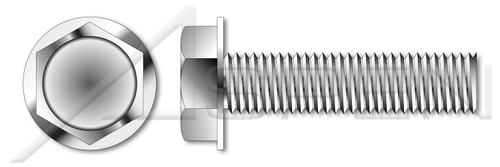

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.190"
- Length (Nominal): 1"
- Thread Length (Nominal): 1.000"
- Across Flats (Minimum): 0.305"
- Across Flats (Maximum): 0.312"
- Head Height, Overall (Minimum): 0.105"
- Head Height, Overall (Maximum): 0.120"
- Flange Diameter (Minimum): 0.019"
- Flange Diameter (Maximum): 0.031"
- Flange Thickness (Minimum): 0.384"
- Flange Thickness (Maximum): 0.414"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Indented Washer Head
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3
