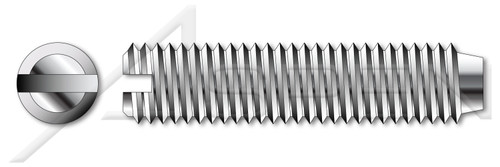

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.1875"
- Length (Nominal): 3/16"
- Thread Length (Nominal): 0.188"
- Point Width (Minimum): 0.088"
- Point Width (Maximum): 0.102"
- Point Angle (Degrees): 118
- Slot Depth (Minimum): 0.043"
- Slot Depth (Maximum): 0.053"
- Slot Width (Minimum): 0.029"
- Slot Width (Maximum): 0.035"
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Cup Point
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
