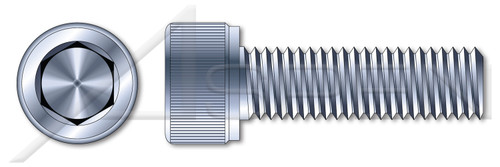

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
- Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
- Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 3/4"
- Thread Length (Nominal): 0.75"
- Drive Recess Size: 5/32"
- Drive Recess Width: 0.156"
- Drive Recess Depth: 0.09"
- Head Diameter: 0.312"
- Head Diameter (Minimum): 0.298"
- Head Diameter (Maximum): 0.312"
- Head Height, Overall: 0.19"
- Head Height, Overall (Minimum): 0.185"
- Head Height, Overall (Maximum): 0.19"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: UNF Fine Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Mechanically Zinc Plated
- Coating Color: Clear
- Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
- Origin: Origin Undefined
- Standards and Specifications: ASTM B695-2000
- Standards and Specifications:
- ASTM B695-2000
- Material Processes:
- Heat Treated
- Coating:
- Mechanically Zinc Plated
- Pitch:
- UNF Fine Thread
- Thread Length:
- Full Thread
- Diameter (Dimension):
- 0.19"
- Thread Direction:
- Right-Hand Thread
- Diameter (Nominal):
- #10
- Length (Nominal):
- 3/4"
- Thread Pitch:
- 32
- Head Height, Overall:
- 0.19"
- Head Diameter:
- 0.312"
- Material Grade:
- Alloy Steel
- Shop by Application:
- Socket Products
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Socket Head Cap Screws
- System of Measurement:
- Inch
- Brand:
- Aspen Fasteners
- Coating Color:
- Clear
- Coating Standard:
- Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Inch
- Material:
- Steel
- Head Style:
- Cylindrical Head
- Drive Style:
- Hex Socket Drive
- POS:
- SO093-1032X34X075X031-001000
- Head Height, Overall (Minimum):
- 0.185"
- Head Diameter (Maximum):
- 0.312"
- Drive Recess Size:
- 5/32"
- Origin:
- Origin Undefined
- Thread Length (Nominal):
- 0.75"
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SO093-1032X34X075X031.zip
- Drive Recess Width:
- 0.156"
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product91/SO093-1032X34X075X031.PDF
- Drive Recess Depth:
- 0.09"
- Head Height, Overall (Maximum):
- 0.19"
- Diameter (Minimum):
- 0.184"
- Head Diameter (Minimum):
- 0.298"
- Diameter (Maximum):
- 0.19"
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO093-1032X34X075X031
-
Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
- In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
- Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
- Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.19"
- Diameter (Minimum): 0.184"
- Diameter (Maximum): 0.19"
- Length (Nominal): 3/4"
- Thread Length (Nominal): 0.75"
- Drive Recess Size: 5/32"
- Drive Recess Width: 0.156"
- Drive Recess Depth: 0.09"
- Head Diameter: 0.312"
- Head Diameter (Minimum): 0.298"
- Head Diameter (Maximum): 0.312"
- Head Height, Overall: 0.19"
- Head Height, Overall (Minimum): 0.185"
- Head Height, Overall (Maximum): 0.19"
- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: UNF Fine Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Mechanically Zinc Plated
- Coating Color: Clear
- Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
- Origin: Origin Undefined
- Standards and Specifications: ASTM B695-2000
- Product UPC Code:
- 698435541733
-
