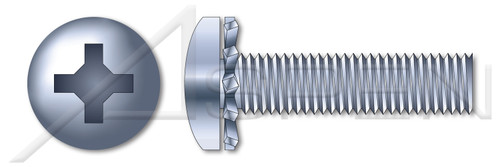

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.190"
- Length (Nominal): 3/8"
- Thread Length (Nominal): 0.375"
- Outside Diameter (Minimum): 0.365"
- Outside Diameter (Maximum): 0.381"
- Thickness (Minimum): 0.018"
- Thickness (Maximum): 0.024"
- Drive Recess Size: #2
- Drive Recess Width: 0.192"
- Drive Recess Depth (Minimum): 0.089"
- Drive Recess Depth (Maximum): 0.113"
- Head Diameter (Minimum): 0.357"
- Head Diameter (Maximum): 0.373"
- Head Height, Overall (Minimum): 0.122"
- Head Height, Overall (Maximum): 0.133"
- Head Radius: 0.020"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
- Head Style: Pan Head
- Head Style Detail: Free-Spinning External Tooth Lock Washer
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.13a and SAE J82
- Thread Direction:
- Right-Hand Thread
- Length (Nominal):
- 3/8"
- Drive Style:
- Cruciform Recess Drive
- Head Style Detail:
- Free-Spinning External Tooth Lock Washer
- Head Style:
- Pan Head
- Form and Design:
- SEMS Screws Pre-Assembled with a Captive Lock Washer
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Machine Screws
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Inch
- Coating:
- Zinc Plated
- Diameter (Nominal):
- #10
- Standards and Specifications:
- ASME B18.13a and SAE J82
- Coating Color:
- Clear
- Drive Detail:
- Phillips Type H
- Thread Length:
- Full Thread
- Thread Pitch:
- 32
- Material:
- Steel
- Diameter (Dimension):
- 0.190"
- POS:
- SC224-1032X38-008000,SC224-1032X38-007000
- Brand:
- Aspen Fasteners(r)
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC224-1032X38
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC224-1032X38.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product43/SC224-1032X38.PDF
- Origin:
- Origin Undefined
- Drive Recess Depth (Minimum):
- 0.089"
- Head Diameter (Minimum):
- 0.357"
- Head Height, Overall (Minimum):
- 0.122"
- Drive Recess Width:
- 0.192"
- Outside Diameter (Maximum):
- 0.381"
- Drive Recess Size:
- #2
- Thread Length (Nominal):
- 0.375"
- Thickness (Minimum):
- 0.018"
- Drive Recess Depth (Maximum):
- 0.113"
- Head Height, Overall (Maximum):
- 0.133"
- Outside Diameter (Minimum):
- 0.365"
- Head Diameter (Maximum):
- 0.373"
- Thickness (Maximum):
- 0.024"
-
Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.190"
- Length (Nominal): 3/8"
- Thread Length (Nominal): 0.375"
- Outside Diameter (Minimum): 0.365"
- Outside Diameter (Maximum): 0.381"
- Thickness (Minimum): 0.018"
- Thickness (Maximum): 0.024"
- Drive Recess Size: #2
- Drive Recess Width: 0.192"
- Drive Recess Depth (Minimum): 0.089"
- Drive Recess Depth (Maximum): 0.113"
- Head Diameter (Minimum): 0.357"
- Head Diameter (Maximum): 0.373"
- Head Height, Overall (Minimum): 0.122"
- Head Height, Overall (Maximum): 0.133"
- Head Radius: 0.020"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
- Head Style: Pan Head
- Head Style Detail: Free-Spinning External Tooth Lock Washer
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.13a and SAE J82
-
