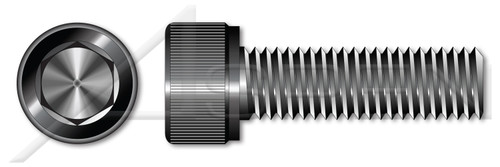

#10-32 X 9/16" Hex Socket Head Cap Screws, Full Thread, UNF Fine Thread, Alloy Steel, Black Oxide

#10-32 X 9/16" Hex Socket Head Cap Screws, Full Thread, UNF Fine Thread, Alloy Steel, Black Oxide

PART NUMBER:
SO085-1032X916-005000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #10
  • Thread Pitch: 32
  • Diameter (Dimension): 0.19"
  • Diameter (Minimum): 0.184"
  • Diameter (Maximum): 0.19"
  • Length (Nominal): 9/16"
  • Thread Length (Nominal): 0.5625"
  • Drive Recess Size: 5/32"
  • Drive Recess Width: 0.156"
  • Drive Recess Depth: 0.09"
  • Head Diameter: 0.312"
  • Head Diameter (Minimum): 0.298"
  • Head Diameter (Maximum): 0.312"
  • Head Height, Overall: 0.19"
  • Head Height, Overall (Minimum): 0.185"
  • Head Height, Overall (Maximum): 0.19"
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: Semi-Standard
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: UNF Fine Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Oxidized
  • Coating Color: Black
  • Origin: Origin Undefined
  • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
Product UPC Code:
698435931824
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Alloy Steel
Head Height, Overall:
0.19"
Head Diameter:
0.312"
Diameter (Dimension):
0.19"
Diameter (Nominal):
#10
Material Processes:
Heat Treated
Coating:
Oxidized
Coating Color:
Black
Standards and Specifications:
ASME/ANSI B18.3-2002 and ASTM A574
Head Style:
Cylindrical Head
Form and Design:
Semi-Standard
Brand:
Aspen Fasteners
System of Measurement:
Inch
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Steel
Shop by System of Measurement:
Inch
Thread Length:
0.5625"
Length (Nominal):
9/16"
Thread Pitch:
32
Drive Style:
Hex Socket Drive
Pitch:
UNF Fine Thread
POS:
SO085-1032X916-005000,SO085-1032X916X05625X-002500
Drive Recess Width:
0.156"
Diameter (Maximum):
0.19"
Diameter (Minimum):
0.184"
Drive Recess Size:
5/32"
Head Diameter (Maximum):
0.312"
Head Height, Overall (Maximum):
0.19"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO085-1032X916
Thread Length (Nominal):
0.5625"
Origin:
Origin Undefined
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/SO085-1032X916.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product91/SO085-1032X916.PDF
Head Diameter (Minimum):
0.298"
Head Height, Overall (Minimum):
0.185"
Drive Recess Depth:
0.09"
