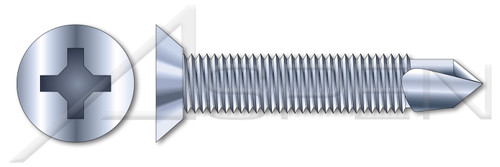

- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #12
- Thread Pitch: 24
- Length (Nominal): 5/8"
PRODUCT ATTRIBUTES- Category: Self-Drilling Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Undercut Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Threading: Machine Screw Threading
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C50-C56 / Core=C32-C40
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J78
Product UPC Code:
698435305649
- Hardness Rating:
- Rockwell C50-C56 / Core=C32-C40
- Thread Pitch:
- 24
- Shop by System of Measurement:
- Inch
- Drive Style:
- Cruciform Recess Drive
- Brand:
- Aspen Fasteners
- Length (Nominal):
- 5/8"
- Product Class:
- Externally Threaded Fasteners
- Coating:
- Zinc Plated and Baked
- Thread Direction:
- Right-Hand Thread
- Head Style Detail:
- 82 Degree Countersink
- Shop by Material:
- Steel
- Category:
- Self-Drilling Screws
- System of Measurement:
- Inch
- Head Style:
- Flat Countersunk Undercut Head
- Diameter (Nominal):
- #12
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC010-1224X58
- Material:
- Steel
- Drive Detail:
- Phillips Type H
- Point:
- Self-Drilling Point
- Order:
- Thread Cutting Fasteners
- Coating Color:
- Clear
- Origin:
- Origin Undefined
- Threading:
- Machine Screw Threading
- Standards and Specifications:
- ASME B18.6.3 and SAE J78
- Material Processes:
- Case Hardened
- POS:
- SC010-1224X58-005000
