- Heavy hex jam nuts are thinner than heavy hex nut but have the same dimensions across the flats.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/4"
- Thread Pitch: 10
- Diameter (Dimension): 0.75"
- Thread Length (Nominal): 0.422"
- Across Flats (Basic): 1-1/4"
- Across Flats (Minimum): 1.212"
- Across Flats (Maximum): 1.25"
- Height (Basic): 27/64"
- Height (Minimum): 0.398"
- Height (Maximum): 0.446"

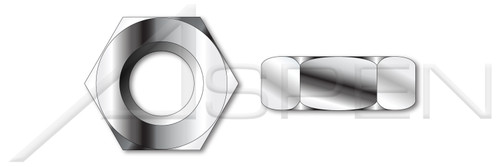

PRODUCT ATTRIBUTES- Category: Hex Jam Thin Heavy Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
Product UPC Code:
698435766624
- Coating:
- Uncoated
- Material Grade:
- 18-8 Stainless Steel
- Material:
- Stainless Steel
- Product Class:
- Internally Threaded Fasteners
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Drive Style:
- External Hex Drive
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Hex Jam Thin Heavy Nuts
- Order:
- Nuts
- Diameter (Nominal):
- 3/4"
- Diameter (Dimension):
- 0.75"
- Thread Pitch:
- 10
- Thread Length (Nominal):
- 0.422"
- Across Flats (Basic):
- 1-1/4"
- Across Flats (Minimum):
- 1.212"
- Across Flats (Maximum):
- 1.25"
- Height (Basic):
- 27/64"
- Height (Minimum):
- 0.398"
- Height (Maximum):
- 0.446"
