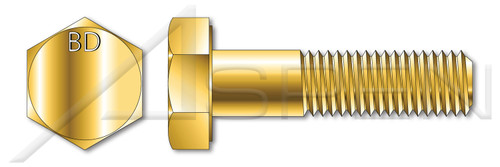

3/4"-16 X 2-1/4" Hex Head Cap Screws Bolts, UNF Fine Thread, ASTM A354 Grade BD Alloy Steel, Yellow Zinc and Baked, DFARS

3/4"-16 X 2-1/4" Hex Head Cap Screws Bolts, UNF Fine Thread, ASTM A354 Grade BD Alloy Steel, Yellow Zinc and Baked, DFARS

PART NUMBER:
MI007-3416X214-000075
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Military grade fasteners are DFARS compliant and made in North America. Certifications available.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • The washer face under the head provides a precision bearing surface.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 3/4"
  • Thread Pitch: 16
  • Diameter (Dimension): 0.75"
  • Diameter (Minimum): 0.741"
  • Diameter (Maximum): 0.750"
  • Length (Nominal): 2-1/4"
  • Thread Length (Nominal): 1.75"
  • Across Flats (Basic): 1-1/8"
  • Across Flats (Minimum): 1.100"
  • Across Flats (Maximum): 1.125"
  • Head Height, Overall: 15/32"
  • Head Height, Overall (Minimum): 0.455"
  • Head Height, Overall (Maximum): 0.483"
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Head Markings: Material Grade Mark "BD"
  • Drive Style: External Hex Drive
  • Pitch: Fine Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: Alloy Steel ASTM A354 Grade BD
  • Coating: Zinc Plated and Baked
  • Coating Color: Yellow
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.2.1.BH, DFARS
Product UPC Code:
692559723020
Thread Direction:
Right-Hand Thread
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/MI007-3416X214
Pitch:
Fine Thread
Diameter (Maximum):
0.750"
Product Class:
Externally Threaded Fasteners
Shop by Application:
Military Grade Fasteners
Order:
Machine Thread Fasteners
Diameter (Nominal):
3/4"
Point:
Chamfered Point
Across Flats (Minimum):
1.100"
Category:
Cap Screws
Shop by System of Measurement:
Inch
Across Flats (Basic):
1-1/8"
Coating Color:
Yellow
Head Style:
Hex Head
Origin:
Made in U.S.A.
Diameter (Dimension):
0.75"
Thread Length (Nominal):
1.75"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/MI007-3416X214.zip
Across Flats (Maximum):
1.125"
Drive Style:
External Hex Drive
Length (Nominal):
2-1/4"
Head Height, Overall (Maximum):
0.483"
Head Height, Overall:
15/32"
Material Grade:
Alloy Steel ASTM A354 Grade BD
Head Height, Overall (Minimum):
0.455"
Shop by Material:
Steel
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product77/MI007-3416X214.PDF
Diameter (Minimum):
0.741"
Coating:
Zinc Plated and Baked
Standards and Specifications:
ASME B18.2.1.BH, DFARS
Head Markings:
Material Grade Mark "BD"
Material:
Steel
Thread Pitch:
16
System of Measurement:
Inch
Brand:
Aspen Fasteners
Head Style Detail:
Washer Face
POS:
MI007-3416X214-000075
Print
  • Description
    • Military grade fasteners are DFARS compliant and made in North America. Certifications available.
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • The washer face under the head provides a precision bearing surface.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 3/4"
    • Thread Pitch: 16
    • Diameter (Dimension): 0.75"
    • Diameter (Minimum): 0.741"
    • Diameter (Maximum): 0.750"
    • Length (Nominal): 2-1/4"
    • Thread Length (Nominal): 1.75"
    • Across Flats (Basic): 1-1/8"
    • Across Flats (Minimum): 1.100"
    • Across Flats (Maximum): 1.125"
    • Head Height, Overall: 15/32"
    • Head Height, Overall (Minimum): 0.455"
    • Head Height, Overall (Maximum): 0.483"
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Head Markings: Material Grade Mark "BD"
    • Drive Style: External Hex Drive
    • Pitch: Fine Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: Alloy Steel ASTM A354 Grade BD
    • Coating: Zinc Plated and Baked
    • Coating Color: Yellow
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.2.1.BH, DFARS
    Product UPC Code:
    692559723020
