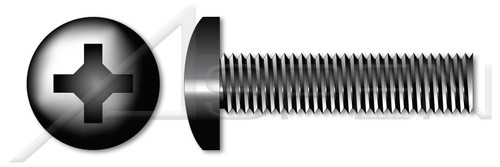

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #3
- Thread Pitch: 48
- Diameter (Dimension): 0.099"
- Length (Nominal): 3/8"
- Thread Length (Nominal): 0.375"
- Drive Recess Size: #1
- Drive Recess Width: 0.105"
- Drive Recess Depth (Minimum): 0.043"
- Drive Recess Depth (Maximum): 0.061"
- Head Diameter (Minimum): 0.180"
- Head Diameter (Maximum): 0.193"
- Head Height, Overall (Minimum): 0.062"
- Head Height, Overall (Maximum): 0.071"
- Head Radius: 0.010"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Oxidized
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435343788
- Brand:
- Aspen Fasteners
- Category:
- Machine Screws
- Coating:
- Oxidized
- Coating Color:
- Black
- Diameter (Nominal):
- #3
- Drive Detail:
- Phillips Type H
- Drive Style:
- Cruciform Recess Drive
- Head Style:
- Pan Head
- Length (Nominal):
- 3/8"
- Material:
- Steel
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- System of Measurement:
- Inch
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Thread Pitch:
- 48
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC147-348X38
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Inch
- Origin:
- Origin Undefined
- POS:
- SC147-348X38-010000
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product48/SC147-348X38.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC147-348X38.zip
- Drive Recess Depth (Minimum):
- 0.043"
- Head Diameter (Maximum):
- 0.193"
- Head Height, Overall (Minimum):
- 0.062"
- Thread Length (Nominal):
- 0.375"
- Diameter (Dimension):
- 0.099"
- Drive Recess Width:
- 0.105"
- Drive Recess Size:
- #1
- Head Diameter (Minimum):
- 0.180"
- Head Height, Overall (Maximum):
- 0.071"
- Drive Recess Depth (Maximum):
- 0.061"
