- Military grade fasteners are DFARS compliant and made in North America. Certifications available.
- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.

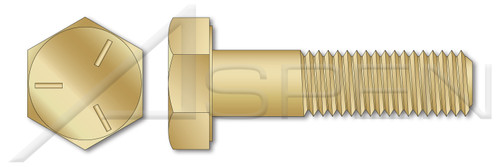

- The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
- The washer face under the head provides a precision bearing surface.
- Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Cadmium plating offer outstanding corrosion resistance, even in high-salt environments.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/8"
- Thread Pitch: 16
- Diameter (Dimension): 0.375"
- Diameter (Minimum): 0.369"
- Diameter (Maximum): 0.375"
- Length (Nominal): 1-3/4"
- Thread Length (Nominal): 1"
- Across Flats (Basic): 9/16"
- Across Flats (Minimum): 0.551"
- Across Flats (Maximum): 0.562"
- Head Height, Overall: 0.2344"
- Head Height, Overall (Minimum): 0.226"
- Head Height, Overall (Maximum): 0.243"
PRODUCT ATTRIBUTES- Category: Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Head Markings: Three radial lines 120 degrees apart and manufacturer ID
- Drive Style: External Hex Drive
- Pitch: Coarse Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Grade 5
- Coating: Cadmium Plated
- Coating Color: Yellow
- Origin: Made in U.S.A.
- Standards and Specifications: MS90725, DFARS
Product UPC Code:
692559444338
- Product Class:
- Externally Threaded Fasteners
- Coating:
- Cadmium Plated
- Diameter (Nominal):
- 3/8"
- Diameter (Dimension):
- 0.375"
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product76/MI003-3816X134.PDF
- Standards and Specifications:
- MS90725, DFARS
- Head Height, Overall:
- 0.2344"
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/MI003-3816X134.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/MI003-3816X134
- Thread Direction:
- Right-Hand Thread
- Shop by System of Measurement:
- Inch
- Material Grade:
- Grade 5
- System of Measurement:
- Inch
- Material:
- Steel
- Drive Style:
- External Hex Drive
- Shop by Material:
- Steel
- Head Style Detail:
- Washer Face
- Pitch:
- Coarse Thread
- Origin:
- Made in U.S.A.
- Thread Pitch:
- 16
- Across Flats (Basic):
- 9/16"
- Brand:
- Aspen Fasteners
- Point:
- Chamfered Point
- Across Flats (Maximum):
- 0.562"
- Category:
- Cap Screws
- Shop by Application:
- Military Grade Fasteners
- Across Flats (Minimum):
- 0.551"
- Head Height, Overall (Maximum):
- 0.243"
- Head Height, Overall (Minimum):
- 0.226"
- Head Style:
- Hex Head
- Diameter (Minimum):
- 0.369"
- Coating Color:
- Yellow
- Length (Nominal):
- 1-3/4"
- Order:
- Machine Thread Fasteners
- Thread Length (Nominal):
- 1"
- Head Markings:
- Three radial lines 120 degrees apart and manufacturer ID
- Diameter (Maximum):
- 0.375"
- POS:
- MI003-3816X134-000600
