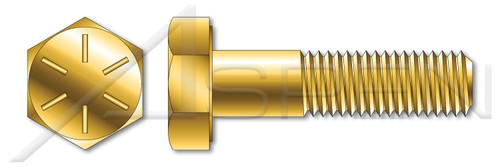

- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
- The washer face under the head provides a precision bearing surface.
- Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
- The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/8"
- Thread Pitch: 16
- Diameter (Dimension): 0.375"
- Diameter (Minimum): 0.369"
- Diameter (Maximum): 0.375"
- Length (Nominal): 1-3/8"
- Thread Length (Nominal): 1"
- Across Flats (Basic): 9/16"
- Across Flats (Minimum): 0.551"
- Across Flats (Maximum): 0.562"
- Head Height, Overall: 0.2344"
- Head Height, Overall (Minimum): 0.226"
- Head Height, Overall (Maximum): 0.243"
PRODUCT ATTRIBUTES- Category: Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Head Markings: Six radial lines 60 degrees apart and manufacturer ID
- Drive Style: External Hex Drive
- Pitch: UNC Coarse Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Grade 8
- Coating: Zinc Plated
- Coating Color: Yellow
- Standards and Specifications: ASME B18.2.1 and SAE J429
Product UPC Code:
698435054189
- Coating:
- Zinc Plated
- Diameter (Minimum):
- 0.369"
- Diameter (Nominal):
- 3/8"
- Drive Style:
- External Hex Drive
- Head Height, Overall:
- 0.2344"
- Head Height, Overall (Maximum):
- 0.243"
- Head Height, Overall (Minimum):
- 0.226"
- Head Markings:
- Six radial lines 60 degrees apart and manufacturer ID
- Head Style:
- Hex Head
- Length (Nominal):
- 1-3/8"
