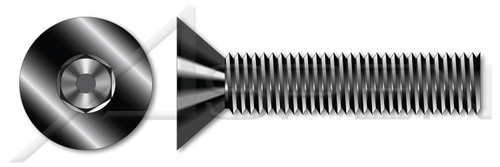

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- An internal hex socket drive is also known as an Allen drive.
- Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/8"
- Thread Pitch: 16
- Diameter (Dimension): 0.375"
- Diameter (Minimum): 0.3678"
- Diameter (Maximum): 0.375"
- Length (Nominal): 1"
- Thread Length (Nominal): 1"
- Drive Recess Size: 7/32"
- Drive Recess Width: 0.219"
- Drive Recess Depth: 0.159"
- Head Diameter (Minimum): 0.72"
- Head Diameter (Maximum): 0.781"
- Head Height, Overall: 0.234"
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Hex Socket Drive
- Threading: Thread Class 3A
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Alloy Steel
- Material Processes: Heat Treated
- Coating: Uncoated
- Origin: Origin Undefined
Product UPC Code:
698435510319
- Material Grade:
- Alloy Steel
- Material:
- Steel
- Thread Direction:
- Right-Hand Thread
- Threading:
- Thread Class 3A
- Drive Style:
- Hex Socket Drive
- Head Style Detail:
- 82 Degree Countersink
- Head Style:
- Flat Countersunk Head
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Socket Head Cap Screws
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Coating:
- Uncoated
- Material Processes:
- Heat Treated
- Length (Nominal):
- 1"
- Thread Pitch:
- 16
- Diameter (Nominal):
- 3/8"
- POS:
- SO039-3816X1-001000
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SO039-3816X1.zip
- Thread Length (Nominal):
- 1"
- Drive Recess Size:
- 7/32"
- Shop by System of Measurement:
- Inch
- Head Height, Overall:
- 0.234"
- Shop by Application:
- Socket Products
- Diameter (Maximum):
- 0.375"
- Shop by Material:
- Steel
- Drive Recess Width:
- 0.219"
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO039-3816X1
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product71/SO039-3816X1.PDF
- Diameter (Dimension):
- 0.375"
- Head Diameter (Minimum):
- 0.72"
- Head Diameter (Maximum):
- 0.781"
- Drive Recess Depth:
- 0.159"
- Diameter (Minimum):
- 0.3678"
- Origin:
- Origin Undefined
