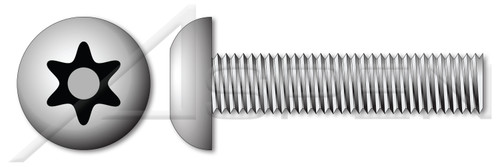

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Button head screws have a wider bearing surface and maintain a low head profile.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/8"
- Thread Pitch: 16
- Diameter (Dimension): 0.375"
- Length (Nominal): 1"
- Thread Length (Nominal): 1"
- Drive Recess Size: T45
- Drive Recess Width: 0.312"
- Drive Recess Depth: 0.11"
- Head Diameter (Minimum): 0.636"
- Head Diameter (Maximum): 0.656"
- Head Height, Overall (Minimum): 0.185"
- Head Height, Overall (Maximum): 0.199"
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Button Head
- Drive Style: Tamper-Resistant 6Lobe Pin Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
Product UPC Code:
692559802626
- Length (Nominal):
- 1"
- Shop by Application:
- Tamper-Resistant Security Fasteners
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Socket Head Cap Screws
- System of Measurement:
- Inch
- Brand:
- Aspen Fasteners
- Head Style:
- Button Head
- Drive Style:
- Tamper-Resistant 6Lobe Pin Drive
- Drive Detail:
- Torx(r) Generic Alternative
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Material Grade:
- 18-8 Stainless Steel
- Shop by System of Measurement:
- Inch
- Coating:
- Uncoated
- Diameter (Nominal):
- 3/8"
- Thread Pitch:
- 16
- Shop by Material:
- Stainless Steel
- POS:
- ST297-3816X1-000075
- Head Height, Overall (Maximum):
- 0.199"
- Drive Recess Width:
- 0.312"
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product69/ST297-3816X1.PDF
- Drive Recess Size:
- T45
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST297-3816X1
- Head Diameter (Minimum):
- 0.636"
- Diameter (Dimension):
- 0.375"
- Drive Recess Depth:
- 0.11"
- Head Height, Overall (Minimum):
- 0.185"
- Origin:
- Origin Undefined
- Thread Length (Nominal):
- 1"
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ST297-3816X1.zip
- Head Diameter (Maximum):
- 0.656"
