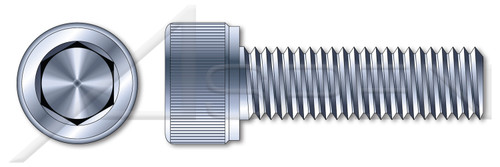

3/8"-16 X 4" Hex Socket Head Cap Screws, Part Thread, UNC Coarse Thread, Alloy Steel, Zinc

3/8"-16 X 4" Hex Socket Head Cap Screws, Part Thread, UNC Coarse Thread, Alloy Steel, Zinc

PART NUMBER:
SO094-3816X4-000200
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
  • Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 3/8"
  • Thread Pitch: 16
  • Diameter (Dimension): 0.375"
  • Diameter (Minimum): 0.3678"
  • Diameter (Maximum): 0.375"
  • Length (Nominal): 4"
  • Thread Length (Nominal): 1.5"
  • Drive Recess Size: 5/16"
  • Drive Recess Width: 0.312"
  • Drive Recess Depth: 0.182"
  • Head Diameter: 0.562"
  • Head Diameter (Minimum): 0.54"
  • Head Diameter (Maximum): 0.562"
  • Head Height, Overall: 0.375"
  • Head Height, Overall (Minimum): 0.368"
  • Head Height, Overall (Maximum): 0.375"
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: UNC Coarse Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Mechanically Zinc Plated
  • Coating Color: Clear
  • Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
  • Origin: Origin Undefined
  • Standards and Specifications: ASTM B695-2000
Product UPC Code:
698435934986
Diameter (Dimension):
0.375"
Head Height, Overall:
0.375"
Head Diameter:
0.562"
Thread Length:
1.5"
Length (Nominal):
4"
Shop by System of Measurement:
Inch
Shop by Material:
Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Inch
Brand:
Aspen Fasteners
Head Style:
Cylindrical Head
Drive Style:
Hex Socket Drive
Pitch:
UNC Coarse Thread
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Alloy Steel
Material Processes:
Heat Treated
Coating:
Mechanically Zinc Plated
Coating Color:
Clear
Coating Standard:
Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
Standards and Specifications:
ASTM B695-2000
Diameter (Nominal):
3/8"
Thread Pitch:
16
POS:
SO094-3816X4X15X0562-000100,SO094-3816X4-000200
Diameter (Minimum):
0.3678"
Head Diameter (Maximum):
0.562"
Drive Recess Depth:
0.182"
Thread Length (Nominal):
1.5"
Diameter (Maximum):
0.375"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/SO094-3816X4.zip
Head Height, Overall (Minimum):
0.368"
Head Height, Overall (Maximum):
0.375"
Head Diameter (Minimum):
0.54"
Drive Recess Size:
5/16"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO094-3816X4
Origin:
Origin Undefined
Drive Recess Width:
0.312"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product91/SO094-3816X4.PDF
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • Mechanical zinc plating is also known as peen plating, mechanical deposition, or impact plating.
    • Mechanical zinc is similar to zinc electroplating but eliminates the risk of hydrogen embrittlement.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 3/8"
    • Thread Pitch: 16
    • Diameter (Dimension): 0.375"
    • Diameter (Minimum): 0.3678"
    • Diameter (Maximum): 0.375"
    • Length (Nominal): 4"
    • Thread Length (Nominal): 1.5"
    • Drive Recess Size: 5/16"
    • Drive Recess Width: 0.312"
    • Drive Recess Depth: 0.182"
    • Head Diameter: 0.562"
    • Head Diameter (Minimum): 0.54"
    • Head Diameter (Maximum): 0.562"
    • Head Height, Overall: 0.375"
    • Head Height, Overall (Minimum): 0.368"
    • Head Height, Overall (Maximum): 0.375"
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Pitch: UNC Coarse Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Heat Treated
    • Coating: Mechanically Zinc Plated
    • Coating Color: Clear
    • Coating Standard: Type 2 Mechanical Zinc 0.0002" Cr+3 RoHS
    • Origin: Origin Undefined
    • Standards and Specifications: ASTM B695-2000
    Product UPC Code:
    698435934986
