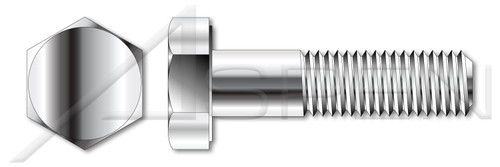

5/16"-24 X 2" Hex Head Cap Screws Bolts, UNF Fine Thread, Stainless Steel, MS35308 Rev E, DFARS

5/16"-24 X 2" Hex Head Cap Screws Bolts, UNF Fine Thread, Stainless Steel, MS35308 Rev E, DFARS

PART NUMBER:
MI005-51624X2
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Military grade fasteners are DFARS compliant and made in North America. Certifications available.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The washer face under the head provides a precision bearing surface.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 24
  • Diameter (Dimension): 0.3125"
  • Diameter (Minimum): 0.3065"
  • Diameter (Maximum): 0.3125"
  • Length (Nominal): 2"
  • Thread Length (Nominal): 0.875"
  • Across Flats (Basic): 1/2"
  • Across Flats (Minimum): 0.489"
  • Across Flats (Maximum): 0.500"
  • Head Height, Overall: 0.2031"
  • Head Height, Overall (Minimum): 0.195"
  • Head Height, Overall (Maximum): 0.211"
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Drive Style: External Hex Drive
  • Pitch: Fine Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Material Processes: Passivated
  • Coating: Uncoated
  • Origin: Made in U.S.A.
  • Standards and Specifications: MS35308 Rev E, DFARS
Diameter (Minimum):
0.3065"
Coating:
Uncoated
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product76/MI005-51624X2.PDF
Material Grade:
18-8 Stainless Steel
Material Processes:
Passivated
Diameter (Maximum):
0.3125"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/MI005-51624X2.zip
Head Style Detail:
Washer Face
Category:
Cap Screws
Material:
Stainless Steel
Across Flats (Maximum):
0.500"
Shop by System of Measurement:
Inch
System of Measurement:
Inch
Origin:
Made in U.S.A.
Across Flats (Basic):
1/2"
Head Height, Overall:
0.2031"
Shop by Application:
Military Grade Fasteners
Diameter (Dimension):
0.3125"
Order:
Machine Thread Fasteners
Thread Length (Nominal):
0.875"
Length (Nominal):
2"
Head Style:
Hex Head
Point:
Chamfered Point
Brand:
Aspen Fasteners
Across Flats (Minimum):
0.489"
Drive Style:
External Hex Drive
Shop by Material:
Stainless Steel
Head Height, Overall (Minimum):
0.195"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/MI005-51624X2
Standards and Specifications:
MS35308 Rev E, DFARS
Thread Pitch:
24
Diameter (Nominal):
5/16"
Pitch:
Fine Thread
Thread Direction:
Right-Hand Thread
Head Height, Overall (Maximum):
0.211"
Product Class:
Externally Threaded Fasteners
POS:
MI005-51624X2-000060,MI005-51624X2-000200
Print
  • Description
    • Military grade fasteners are DFARS compliant and made in North America. Certifications available.
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The washer face under the head provides a precision bearing surface.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 24
    • Diameter (Dimension): 0.3125"
    • Diameter (Minimum): 0.3065"
    • Diameter (Maximum): 0.3125"
    • Length (Nominal): 2"
    • Thread Length (Nominal): 0.875"
    • Across Flats (Basic): 1/2"
    • Across Flats (Minimum): 0.489"
    • Across Flats (Maximum): 0.500"
    • Head Height, Overall: 0.2031"
    • Head Height, Overall (Minimum): 0.195"
    • Head Height, Overall (Maximum): 0.211"
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Drive Style: External Hex Drive
    • Pitch: Fine Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Material Processes: Passivated
    • Coating: Uncoated
    • Origin: Made in U.S.A.
    • Standards and Specifications: MS35308 Rev E, DFARS
  • 3D Product View
