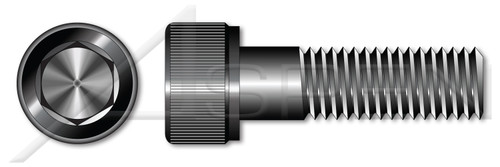

5/16"-24 X 3-1/2" Hex Socket Head Cap Screws, Part Thread, UNF Fine Thread, Alloy Steel, Black Oxide

5/16"-24 X 3-1/2" Hex Socket Head Cap Screws, Part Thread, UNF Fine Thread, Alloy Steel, Black Oxide

PART NUMBER:
SO088-51624X312X1375X-000300
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/16"
  • Thread Pitch: 24
  • Diameter (Dimension): 0.3125"
  • Diameter (Minimum): 0.3053"
  • Diameter (Maximum): 0.3125"
  • Length (Nominal): 3-1/2"
  • Thread Length (Nominal): 1.375"
  • Drive Recess Size: 1/4"
  • Drive Recess Width: 0.25"
  • Drive Recess Depth: 0.151"
  • Head Diameter: 0.469"
  • Head Diameter (Minimum): 0.446"
  • Head Diameter (Maximum): 0.469"
  • Head Height, Overall: 0.312"
  • Head Height, Overall (Minimum): 0.306"
  • Head Height, Overall (Maximum): 0.312"
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: Semi-Standard
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: UNF Fine Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Oxidized
  • Coating Color: Black
  • Origin: Origin Undefined
  • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
Product UPC Code:
698435539525
Thread Length:
Part Thread
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Alloy Steel
Material Processes:
Heat Treated
Coating:
Oxidized
Brand:
Aspen Fasteners
Form and Design:
Semi-Standard
Head Style:
Cylindrical Head
Coating Color:
Black
Standards and Specifications:
ASME/ANSI B18.3-2002 and ASTM A574
Diameter (Nominal):
5/16"
Diameter (Dimension):
0.3125"
Shop by System of Measurement:
Inch
Thread Pitch:
24
Drive Style:
Hex Socket Drive
Shop by Material:
Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Head Diameter:
0.469"
Head Height, Overall:
0.312"
Category:
Socket Head Cap Screws
System of Measurement:
Inch
Length (Nominal):
3-1/2"
Pitch:
UNF Fine Thread
POS:
SO088-51624X312X1375X-000300
Drive Recess Depth:
0.151"
Diameter (Maximum):
0.3125"
Diameter (Minimum):
0.3053"
Head Diameter (Maximum):
0.469"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO088-51624X312X1375X
Origin:
Origin Undefined
Drive Recess Size:
1/4"
Head Height, Overall (Maximum):
0.312"
Head Height, Overall (Minimum):
0.306"
Head Diameter (Minimum):
0.446"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/SO088-51624X312X1375X.zip
Drive Recess Width:
0.25"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product91/SO088-51624X312X1375X.PDF
Thread Length (Nominal):
1.375"
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/16"
    • Thread Pitch: 24
    • Diameter (Dimension): 0.3125"
    • Diameter (Minimum): 0.3053"
    • Diameter (Maximum): 0.3125"
    • Length (Nominal): 3-1/2"
    • Thread Length (Nominal): 1.375"
    • Drive Recess Size: 1/4"
    • Drive Recess Width: 0.25"
    • Drive Recess Depth: 0.151"
    • Head Diameter: 0.469"
    • Head Diameter (Minimum): 0.446"
    • Head Diameter (Maximum): 0.469"
    • Head Height, Overall: 0.312"
    • Head Height, Overall (Minimum): 0.306"
    • Head Height, Overall (Maximum): 0.312"
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: Semi-Standard
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Pitch: UNF Fine Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Heat Treated
    • Coating: Oxidized
    • Coating Color: Black
    • Origin: Origin Undefined
    • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
    Product UPC Code:
    698435539525
  • 3D Product View
