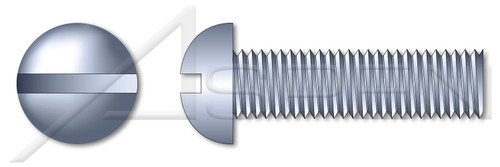

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #5
- Thread Pitch: 40
- Diameter (Dimension): 0.125"
- Length (Nominal): 1"
- Thread Length (Nominal): 1.000"
- Head Diameter (Minimum): 0.217"
- Head Diameter (Maximum): 0.236"
- Head Height, Overall (Minimum): 0.083"
- Head Height, Overall (Maximum): 0.095"
- Slot Depth (Minimum): 0.047"
- Slot Depth (Maximum): 0.063"
- Slot Width (Minimum): 0.035"
- Slot Width (Maximum): 0.043"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Round Head
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435353145
