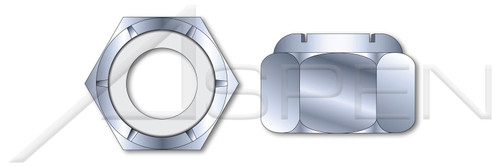

5/8"-11 Hex Nylon Insert Stop Lock Nuts, NU Heavy Full Series, Steel, Zinc Plated

5/8"-11 Hex Nylon Insert Stop Lock Nuts, NU Heavy Full Series, Steel, Zinc Plated

PART NUMBER:
NU073-5811
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
  • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
  • Proof load 90,000 psi. minimum.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/8"
  • Thread Pitch: 11
  • Diameter (Dimension): 0.625"
  • Thread Length (Nominal): 0.677"
  • Across Flats (Basic): 1-1/16"
  • Across Flats (Minimum): 1.045"
  • Across Flats (Maximum): 1.067"
  • Height (Basic): 0.874"
  • Height (Minimum): 0.844"
  • Height (Maximum): 0.874"
PRODUCT ATTRIBUTES
  • Category: Hex Nylon Insert Stop Lock Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Low Carbon Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: NU Heavy Full Series
