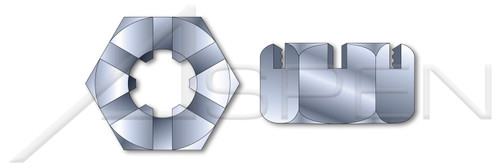

5/8"-18 Slotted Hex Nuts, Finished Nut Pattern, Steel, Zinc Plated

5/8"-18 Slotted Hex Nuts, Finished Nut Pattern, Steel, Zinc Plated

PART NUMBER:
NU043-5818
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as castellated nuts. Functionally interchangeable with slotted castle nuts.
  • Lock the nut to a mated bolt by using a pin or wire threaded through the bolt and slots on the nut.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 5/8"
  • Thread Pitch: 18
  • Diameter (Dimension): 0.625"
  • Thread Length (Nominal): 0.547"
  • Across Flats (Basic): 15/16"
  • Across Flats (Minimum): 0.922"
  • Across Flats (Maximum): 0.938"
  • Height (Basic): 35/64"
  • Height (Minimum): 0.535"
  • Height (Maximum): 0.559"
  • Slot Depth (Nominal): 0.219"
  • Slot Depth (Minimum): 0.195"
  • Slot Depth (Maximum): 0.239"
  • Slot Width (Minimum): 0.18"
  • Slot Width (Maximum): 0.24"
PRODUCT ATTRIBUTES
  • Category: Slotted Hex Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: Finished Nut Pattern
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: ASME B18.2.2 and SAE J995
Diameter (Dimension):
0.625"
Across Flats (Maximum):
0.938"
System of Measurement:
Inch
Slot Depth (Nominal):
0.219"
Height (Basic):
35/64"
Height (Minimum):
0.535"
Standards and Specifications:
ASME B18.2.2 and SAE J995
Slot Depth (Minimum):
0.195"
Form and Design:
Finished Nut Pattern
Thread Direction:
Right-Hand Thread
Brand:
Aspen Fasteners
Material:
Steel
Slot Width (Minimum):
0.18"
Coating:
Zinc Plated
Height (Maximum):
0.559"
Shop by System of Measurement:
Inch
Thread Pitch:
18
Order:
Nuts
Across Flats (Minimum):
0.922"
Shop by Material:
Steel
Category:
Slotted Hex Nuts
Product Class:
Internally Threaded Fasteners
Coating Color:
Clear
Drive Style:
External Hex Drive
Slot Depth (Maximum):
0.239"
Diameter (Nominal):
5/8"
Thread Length:
0.547"
Across Flats (Basic):
15/16"
Slot Width (Maximum):
0.24"
Origin:
Origin Undefined
Thread Length (Nominal):
0.547"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/NU043-5818
POS:
NU043-5818X3564X1516-000800,NU043-5818-000250
  • Description
    • Also known as castellated nuts. Functionally interchangeable with slotted castle nuts.
    • Lock the nut to a mated bolt by using a pin or wire threaded through the bolt and slots on the nut.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 5/8"
    • Thread Pitch: 18
    • Diameter (Dimension): 0.625"
    • Thread Length (Nominal): 0.547"
    • Across Flats (Basic): 15/16"
    • Across Flats (Minimum): 0.922"
    • Across Flats (Maximum): 0.938"
    • Height (Basic): 35/64"
    • Height (Minimum): 0.535"
    • Height (Maximum): 0.559"
    • Slot Depth (Nominal): 0.219"
    • Slot Depth (Minimum): 0.195"
    • Slot Depth (Maximum): 0.239"
    • Slot Width (Minimum): 0.18"
    • Slot Width (Maximum): 0.24"
    PRODUCT ATTRIBUTES
    • Category: Slotted Hex Nuts
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: Finished Nut Pattern
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Origin: Origin Undefined
    • Standards and Specifications: ASME B18.2.2 and SAE J995

Contact us for availability information on part number NU043-5818. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
