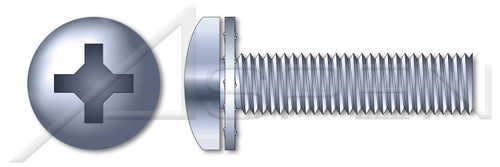

#6-32 X 1-3/4" SEMS Internal Tooth Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated

#6-32 X 1-3/4" SEMS Internal Tooth Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated

PART NUMBER:
SC234-632X134-003000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #6
  • Thread Pitch: 32
  • Diameter (Dimension): 0.138"
  • Length (Nominal): 1-3/4"
  • Thread Length (Nominal): 1.750"
  • Outside Diameter (Minimum): 0.278"
  • Outside Diameter (Maximum): 0.288"
  • Thickness (Minimum): 0.017"
  • Thickness (Maximum): 0.021"
  • Drive Recess Size: #2
  • Drive Recess Width: 0.159"
  • Drive Recess Depth (Minimum): 0.055"
  • Drive Recess Depth (Maximum): 0.080"
  • Head Diameter (Minimum): 0.256"
  • Head Diameter (Maximum): 0.270"
  • Head Height, Overall (Minimum): 0.087"
  • Head Height, Overall (Maximum): 0.097"
  • Head Radius: 0.015"
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
  • Head Style: Pan Head
  • Head Style Detail: Free-Spinning Internal Tooth Lock Washer
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: ASME B18.13a and SAE J82
Product UPC Code:
698435375659
Shop by Material:
Steel
Shop by System of Measurement:
Inch
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style Detail:
Free-Spinning Internal Tooth Lock Washer
Head Style:
Pan Head
Material:
Steel
Coating:
Zinc Plated
Coating Color:
Clear
Standards and Specifications:
ASME B18.13a and SAE J82
Diameter (Nominal):
#6
Diameter (Dimension):
0.138"
Thread Pitch:
32
Length (Nominal):
1-3/4"
Product Class:
Externally Threaded Fasteners
Thread Direction:
Right-Hand Thread
Order:
Machine Thread Fasteners
Category:
Machine Screws
System of Measurement:
Inch
Thread Length:
Full Thread
Brand:
Aspen Fasteners
Form and Design:
SEMS Screws Pre-Assembled with a Captive Lock Washer
Origin:
Origin Undefined
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC234-632X134
POS:
SC234-632X134-003000
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/SC234-632X134.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product44/SC234-632X134.PDF
Thickness (Minimum):
0.017"
Drive Recess Depth (Minimum):
0.055"
Head Diameter (Minimum):
0.256"
Thickness (Maximum):
0.021"
Outside Diameter (Minimum):
0.278"
Head Height, Overall (Minimum):
0.087"
Outside Diameter (Maximum):
0.288"
Drive Recess Depth (Maximum):
0.080"
Head Height, Overall (Maximum):
0.097"
Thread Length (Nominal):
1.750"
Head Diameter (Maximum):
0.270"
Drive Recess Width:
0.159"
Drive Recess Size:
#2
Print
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #6
    • Thread Pitch: 32
    • Diameter (Dimension): 0.138"
    • Length (Nominal): 1-3/4"
    • Thread Length (Nominal): 1.750"
    • Outside Diameter (Minimum): 0.278"
    • Outside Diameter (Maximum): 0.288"
    • Thickness (Minimum): 0.017"
    • Thickness (Maximum): 0.021"
    • Drive Recess Size: #2
    • Drive Recess Width: 0.159"
    • Drive Recess Depth (Minimum): 0.055"
    • Drive Recess Depth (Maximum): 0.080"
    • Head Diameter (Minimum): 0.256"
    • Head Diameter (Maximum): 0.270"
    • Head Height, Overall (Minimum): 0.087"
    • Head Height, Overall (Maximum): 0.097"
    • Head Radius: 0.015"
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
    • Head Style: Pan Head
    • Head Style Detail: Free-Spinning Internal Tooth Lock Washer
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Origin: Origin Undefined
    • Standards and Specifications: ASME B18.13a and SAE J82
    Product UPC Code:
    698435375659
