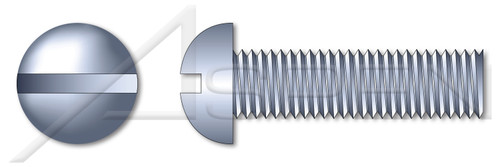

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Diameter (Nominal): #6
- Thread Pitch: 32
- Diameter (Dimension): 0.138"
- Length (Nominal): 2-3/4"
- Thread Length (Nominal): 2.750"
- Head Diameter (Minimum): 0.240"
- Head Diameter (Maximum): 0.260"
- Head Height, Overall (Minimum): 0.091"
- Head Height, Overall (Maximum): 0.103"
- Slot Depth (Minimum): 0.051"
- Slot Depth (Maximum): 0.068"
- Slot Width (Minimum): 0.039"
- Slot Width (Maximum): 0.048"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Round Head
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
