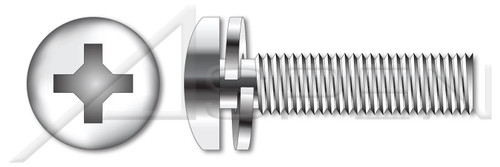

#8-32 X 5/16" Split Lock Washer SEMS Machine Screws, Pan Phillips Drive, Stainless Steel

#8-32 X 5/16" Split Lock Washer SEMS Machine Screws, Pan Phillips Drive, Stainless Steel

PART NUMBER:
ST356-832X516-000150
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #8
  • Thread Pitch: 32
  • Diameter (Dimension): 0.164"
  • Length (Nominal): 5/16"
  • Thread Length (Nominal): 0.313"
  • Inside Diameter (Minimum): 0.149"
  • Inside Diameter (Maximum): 0.155"
  • Outside Diameter (Minimum): 0.305"
  • Outside Diameter (Maximum): 0.319"
  • Thickness (Nominal): 0.040"
  • Radial Width: 0.078"
  • Drive Recess Size: #2
  • Drive Recess Width: 0.175"
  • Drive Recess Depth (Minimum): 0.071"
  • Drive Recess Depth (Maximum): 0.097"
  • Head Diameter (Minimum): 0.306"
  • Head Diameter (Maximum): 0.322"
  • Head Height, Overall (Minimum): 0.105"
  • Head Height, Overall (Maximum): 0.115"
  • Head Radius: 0.015"
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
  • Head Style: Pan Head
  • Head Style Detail: Free-Spinning Split Lock Washer
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
Product UPC Code:
698435760486
Drive Style:
Cruciform Recess Drive
Drive Detail:
Phillips Type H
Thread Length:
Full Thread
Material Grade:
18-8 Stainless Steel
Coating:
Uncoated
Diameter (Nominal):
#8
Diameter (Dimension):
0.164"
Thread Pitch:
32
Length (Nominal):
5/16"
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Shop by System of Measurement:
Inch
Shop by Material:
Stainless Steel
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Machine Screws
System of Measurement:
Inch
Brand:
Aspen Fasteners
Form and Design:
SEMS Screws Pre-Assembled with a Captive Lock Washer
Head Style:
Pan Head
Head Style Detail:
Free-Spinning Split Lock Washer
POS:
ST356-832X516-000150
Brand:
Aspen Fasteners(r)
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product62/ST356-832X516.PDF
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ST356-832X516.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST356-832X516
Drive Recess Depth (Minimum):
0.071"
Head Diameter (Minimum):
0.306"
Inside Diameter (Minimum):
0.149"
Drive Recess Size:
#2
Drive Recess Width:
0.175"
Head Diameter (Maximum):
0.322"
Outside Diameter (Maximum):
0.319"
Origin:
Origin Undefined
Head Height, Overall (Minimum):
0.105"
Drive Recess Depth (Maximum):
0.097"
Thickness (Nominal):
0.040"
Inside Diameter (Maximum):
0.155"
Thread Length (Nominal):
0.313"
Outside Diameter (Minimum):
0.305"
Head Height, Overall (Maximum):
0.115"
Print
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #8
    • Thread Pitch: 32
    • Diameter (Dimension): 0.164"
    • Length (Nominal): 5/16"
    • Thread Length (Nominal): 0.313"
    • Inside Diameter (Minimum): 0.149"
    • Inside Diameter (Maximum): 0.155"
    • Outside Diameter (Minimum): 0.305"
    • Outside Diameter (Maximum): 0.319"
    • Thickness (Nominal): 0.040"
    • Radial Width: 0.078"
    • Drive Recess Size: #2
    • Drive Recess Width: 0.175"
    • Drive Recess Depth (Minimum): 0.071"
    • Drive Recess Depth (Maximum): 0.097"
    • Head Diameter (Minimum): 0.306"
    • Head Diameter (Maximum): 0.322"
    • Head Height, Overall (Minimum): 0.105"
    • Head Height, Overall (Maximum): 0.115"
    • Head Radius: 0.015"
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
    • Head Style: Pan Head
    • Head Style Detail: Free-Spinning Split Lock Washer
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    Product UPC Code:
    698435760486
