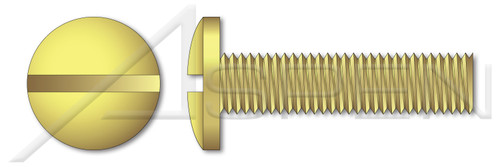

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #8
- Thread Pitch: 32
- Diameter (Dimension): 0.164"
- Length (Nominal): 5/8"
- Thread Length (Nominal): 0.625"
- Head Diameter (Minimum): 0.326"
- Head Diameter (Maximum): 0.344"
- Head Height, Overall (Minimum): 0.095"
- Head Height, Overall (Maximum): 0.105"
- Slot Depth (Minimum): 0.050"
- Slot Depth (Maximum): 0.065"
- Slot Width (Minimum): 0.045"
- Slot Width (Maximum): 0.054"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Binding Undercut Head
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435468030
- Head Style:
- Binding Undercut Head
- Shop by System of Measurement:
- Inch
- Shop by Material:
- Brass
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Machine Screws
- System of Measurement:
- Inch
- Brand:
- Aspen Fasteners
- Drive Style:
- Slotted Drive
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Brass
- Coating:
- Uncoated
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- Diameter (Nominal):
- #8
- Thread Pitch:
- 32
- Length (Nominal):
- 5/8"
- POS:
- SC561-832X58-000700
- Brand:
- Aspen Fasteners(r)
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC561-832X58
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product59/SC561-832X58.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC561-832X58.zip
- Head Height, Overall (Minimum):
- 0.095"
- Thread Length (Nominal):
- 0.625"
- Head Diameter (Maximum):
- 0.344"
- Slot Width (Maximum):
- 0.054"
- Head Diameter (Minimum):
- 0.326"
- Slot Width (Minimum):
- 0.045"
- Diameter (Dimension):
- 0.164"
- Head Height, Overall (Maximum):
- 0.105"
- Origin:
- Origin Undefined
- Slot Depth (Minimum):
- 0.050"
- Slot Depth (Maximum):
- 0.065"
