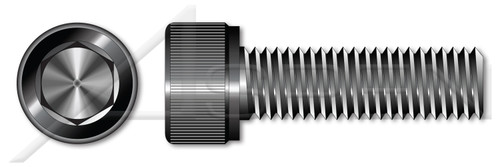

9/16"-18 X 1-3/4" Hex Socket Head Cap Screws, Full Thread, UNF Fine Thread, Alloy Steel, Black Oxide

9/16"-18 X 1-3/4" Hex Socket Head Cap Screws, Full Thread, UNF Fine Thread, Alloy Steel, Black Oxide

PART NUMBER:
SO085-91618X134X175X0-000175
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 9/16"
  • Thread Pitch: 18
  • Diameter (Dimension): 0.5625"
  • Diameter (Minimum): 0.5538"
  • Diameter (Maximum): 0.5625"
  • Length (Nominal): 1-3/4"
  • Thread Length (Nominal): 1.75"
  • Drive Recess Size: 7/16"
  • Drive Recess Width: 0.437"
  • Drive Recess Depth: 0.276"
  • Head Diameter: 0.844"
  • Head Diameter (Minimum): 0.827"
  • Head Diameter (Maximum): 0.843"
  • Head Height, Overall: 0.562"
  • Head Height, Overall (Minimum): 0.554"
  • Head Height, Overall (Maximum): 0.562"
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Form and Design: Semi-Standard
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: UNF Fine Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Alloy Steel
  • Material Processes: Heat Treated
  • Coating: Oxidized
  • Coating Color: Black
  • Origin: Origin Undefined
  • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
Product UPC Code:
698435534964
Brand:
Aspen Fasteners
Head Style:
Cylindrical Head
Drive Style:
Hex Socket Drive
Pitch:
UNF Fine Thread
Thread Direction:
Right-Hand Thread
Head Height, Overall:
0.562"
Head Diameter:
0.844"
Thread Length:
1.75"
Length (Nominal):
1-3/4"
Thread Pitch:
18
Diameter (Dimension):
0.5625"
Diameter (Nominal):
9/16"
Standards and Specifications:
ASME/ANSI B18.3-2002 and ASTM A574
Coating Color:
Black
Coating:
Oxidized
Material:
Steel
Material Grade:
Alloy Steel
Material Processes:
Heat Treated
Shop by System of Measurement:
Inch
Shop by Material:
Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Inch
Form and Design:
Semi-Standard
POS:
SO085-91618X134X175X0-000175
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO085-91618X134X175X0
Drive Recess Width:
0.437"
Drive Recess Depth:
0.276"
Drive Recess Size:
7/16"
Head Diameter (Maximum):
0.843"
Head Height, Overall (Minimum):
0.554"
Head Height, Overall (Maximum):
0.562"
Diameter (Maximum):
0.5625"
Thread Length (Nominal):
1.75"
Diameter (Minimum):
0.5538"
Head Diameter (Minimum):
0.827"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/SO085-91618X134X175X0.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product91/SO085-91618X134X175X0.PDF
Origin:
Origin Undefined
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 9/16"
    • Thread Pitch: 18
    • Diameter (Dimension): 0.5625"
    • Diameter (Minimum): 0.5538"
    • Diameter (Maximum): 0.5625"
    • Length (Nominal): 1-3/4"
    • Thread Length (Nominal): 1.75"
    • Drive Recess Size: 7/16"
    • Drive Recess Width: 0.437"
    • Drive Recess Depth: 0.276"
    • Head Diameter: 0.844"
    • Head Diameter (Minimum): 0.827"
    • Head Diameter (Maximum): 0.843"
    • Head Height, Overall: 0.562"
    • Head Height, Overall (Minimum): 0.554"
    • Head Height, Overall (Maximum): 0.562"
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners
    • Form and Design: Semi-Standard
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Pitch: UNF Fine Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Alloy Steel
    • Material Processes: Heat Treated
    • Coating: Oxidized
    • Coating Color: Black
    • Origin: Origin Undefined
    • Standards and Specifications: ASME/ANSI B18.3-2002 and ASTM A574
    Product UPC Code:
    698435534964
  • 3D Product View
