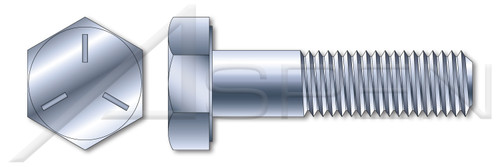

- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
- The washer face under the head provides a precision bearing surface.
- Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 9/16"
- Thread Pitch: 18
- Diameter (Dimension): 0.5625"
- Diameter (Minimum): 0.5545"
- Diameter (Maximum): 0.5625"
- Length (Nominal): 2"
- Thread Length (Nominal): 1.375"
- Across Flats (Basic): 13/16"
- Across Flats (Minimum): 0.798"
- Across Flats (Maximum): 0.812"
- Head Height, Overall: 0.3594"
- Head Height, Overall (Minimum): 0.348"
- Head Height, Overall (Maximum): 0.371"
PRODUCT ATTRIBUTES- Category: Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Head Markings: Three radial lines 120 degrees apart and manufacturer ID
- Drive Style: External Hex Drive
- Pitch: UNF Fine Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Grade 5
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Made in U.S.A.
- Standards and Specifications: ASME B18.2.1 and SAE J429
