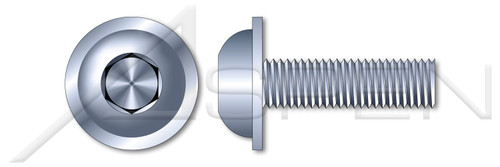

M10-1.5 X 12mm ISO 7380-2, Metric, Flanged Button Head Hex Socket Cap Screws, Full Thread, Class 10.9 Steel, Zinc Plated

M10-1.5 X 12mm ISO 7380-2, Metric, Flanged Button Head Hex Socket Cap Screws, Full Thread, Class 10.9 Steel, Zinc Plated

PART NUMBER:
ME338-1015X12-00025
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Thread Pitch: 1.5
  • Diameter (Dimension): 10mm
  • Diameter (Minimum): 9.78mm
  • Diameter (Maximum): 10mm
  • Length (Nominal): 12mm
  • Thread Length (Nominal): 12mm
  • Drive Recess Size: 6mm
  • Drive Recess Width (Minimum): 6.02mm
  • Drive Recess Width (Maximum): 6.14mm
  • Drive Recess Depth: 3.12mm
  • Head Diameter: 16.5mm
  • Head Diameter (Minimum): 16.1mm
  • Head Diameter (Maximum): 16.5mm
  • Head Height, Overall: 5.5mm
  • Head Height, Overall (Minimum): 5.2mm
  • Head Height, Overall (Maximum): 5.5mm
  • Flange Diameter: 21.9mm
  • Flange Diameter (Minimum): 21.06mm
  • Flange Diameter (Maximum): 21.9mm
  • Flange Thickness: 2mm
  • Flange Thickness (Minimum): 1.7mm
  • Flange Thickness (Maximum): 2mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Button Head with Flange
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 10.9 Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: ISO 7380-2
Product UPC Code:
698435244597
Diameter (Maximum):
10mm
Head Height, Overall (Maximum):
5.5mm
Material:
Steel
Thread Length:
Full Thread
Shop by Application:
Socket Products
Drive Style:
Hex Socket Drive
Diameter (Minimum):
9.78mm
Material Grade:
Class 10.9 Steel
Head Style:
Button Head with Flange
Diameter (Dimension):
10mm
Length (Nominal):
12mm
Shop by Material:
Steel
Coating:
Zinc Plated
Flange Diameter:
21.9mm
Thread Pitch:
1.5
Coating Color:
Clear
Diameter (Nominal):
M10
Flange Thickness:
2mm
Shop by System of Measurement:
Metric
Category:
Socket Head Cap Screws
Head Diameter:
16.5mm
Standards and Specifications:
ISO 7380-2
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Head Diameter (Minimum):
16.1mm
Order:
Machine Thread Fasteners
Flange Thickness (Maximum):
2mm
Brand:
Aspen Fasteners
Product Class:
Externally Threaded Fasteners
Head Diameter (Maximum):
16.5mm
Flange Diameter (Minimum):
21.06mm
Thread Length:
12mm
Head Height, Overall:
5.5mm
Flange Thickness (Minimum):
1.7mm
Recess Size:
6mm
Head Height, Overall (Minimum):
5.2mm
Flange Diameter (Maximum):
21.9mm
POS:
ME338-1015X12-00025
Brand:
Aspen Fasteners(r)
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME338-1015X12.PDF
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME338-1015X12.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME338-1015X12
Drive Recess Width (Maximum):
6.14mm
Origin:
Origin Undefined
Drive Recess Depth:
3.12mm
Drive Recess Width (Minimum):
6.02mm
Drive Recess Size:
6mm
Thread Length (Nominal):
12mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Thread Pitch: 1.5
    • Diameter (Dimension): 10mm
    • Diameter (Minimum): 9.78mm
    • Diameter (Maximum): 10mm
    • Length (Nominal): 12mm
    • Thread Length (Nominal): 12mm
    • Drive Recess Size: 6mm
    • Drive Recess Width (Minimum): 6.02mm
    • Drive Recess Width (Maximum): 6.14mm
    • Drive Recess Depth: 3.12mm
    • Head Diameter: 16.5mm
    • Head Diameter (Minimum): 16.1mm
    • Head Diameter (Maximum): 16.5mm
    • Head Height, Overall: 5.5mm
    • Head Height, Overall (Minimum): 5.2mm
    • Head Height, Overall (Maximum): 5.5mm
    • Flange Diameter: 21.9mm
    • Flange Diameter (Minimum): 21.06mm
    • Flange Diameter (Maximum): 21.9mm
    • Flange Thickness: 2mm
    • Flange Thickness (Minimum): 1.7mm
    • Flange Thickness (Maximum): 2mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Button Head with Flange
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 10.9 Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Origin: Origin Undefined
    • Standards and Specifications: ISO 7380-2
    Product UPC Code:
    698435244597
  • 3D Product View
