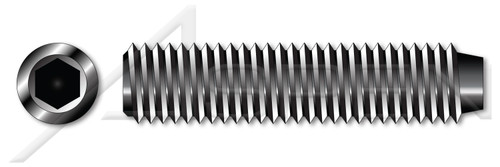

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- An internal hex socket drive is also known as an Allen drive.
- Class 45H steel is an alloy steel, quenched and tempered to Rockwell hardness HRC C45-C53.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Diameter (Dimension): 10mm
- Length (Nominal): 90mm
- Thread Length (Nominal): 90mm
- Drive Recess Size: 5mm
- Drive Recess Depth: 6mm
- Point Width: 6mm
- Point Width (Minimum): 5.7mm
- Point Width (Maximum): 6mm
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Hex Socket Drive
- Pitch: Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Cup Point
- Material: Steel
- Material Grade: Class 45H Steel
- Material Processes: Quenched and Tempered
- Coating: Uncoated
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: DIN 916 / ISO 4029
Product UPC Code:
692559473796
