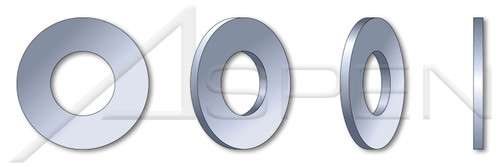

M10 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, Steel, Zinc Plated

M10 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, Steel, Zinc Plated

PART NUMBER:
ME058-10
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • DIN 125 / ISO 7089 are standard commercial metric flat washers.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M10
  • Diameter (Dimension): 10mm
  • Inside Diameter (Nominal): 10.5mm
  • Inside Diameter (Minimum): 10.5mm
  • Inside Diameter (Maximum): 10.77mm
  • Outside Diameter (Nominal): 20mm
  • Outside Diameter (Minimum): 19.48mm
  • Outside Diameter (Maximum): 20mm
  • Thickness (Nominal): 2mm
  • Thickness (Minimum): 1.8mm
  • Thickness (Maximum): 2.2mm
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Not Chamfered
  • Material: Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Standards and Specifications: DIN 125 Type A / ISO 7089
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME058-10
Inside Diameter (Minimum):
10.5mm
Category:
Standard Flat Washers
System of Measurement:
Metric
Diameter (Dimension):
10mm
Coating Color:
Clear
Thickness (Minimum):
1.8mm
Thickness (Nominal):
2mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product82/ME058-10.PDF
Inside Diameter (Nominal):
10.5mm
Product Class:
Washers
Outside Diameter (Nominal):
20mm
Outside Diameter (Maximum):
20mm
Shop by Material:
Steel
Outside Diameter (Minimum):
19.48mm
Brand:
Aspen Fasteners
Shop by System of Measurement:
Metric
Standards and Specifications:
DIN 125 Type A / ISO 7089
Form and Design:
Not Chamfered
Material:
Steel
Coating:
Zinc Plated
Order:
Flat Washers
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME058-10.zip
Inside Diameter (Maximum):
10.77mm
Diameter (Nominal):
M10
Thickness (Maximum):
2.2mm
POS:
ME058-10-005000,ME058-10-002000,ME058-10-01400,ME058-10-004000
Print
  • Description
    • DIN 125 / ISO 7089 are standard commercial metric flat washers.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M10
    • Diameter (Dimension): 10mm
    • Inside Diameter (Nominal): 10.5mm
    • Inside Diameter (Minimum): 10.5mm
    • Inside Diameter (Maximum): 10.77mm
    • Outside Diameter (Nominal): 20mm
    • Outside Diameter (Minimum): 19.48mm
    • Outside Diameter (Maximum): 20mm
    • Thickness (Nominal): 2mm
    • Thickness (Minimum): 1.8mm
    • Thickness (Maximum): 2.2mm
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Not Chamfered
    • Material: Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Standards and Specifications: DIN 125 Type A / ISO 7089
  • 3D Product View

Contact us for availability information on part number ME058-10. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
