- The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Inside Diameter (Nominal): 11mm
- Inside Diameter (Minimum): 11mm
- Inside Diameter (Maximum): 11.43mm
- Outside Diameter (Nominal): 30mm
- Outside Diameter (Minimum): 28.7mm
- Outside Diameter (Maximum): 30mm
- Thickness (Nominal): 3mm
- Thickness (Minimum): 2.4mm
- Thickness (Maximum): 3.6mm

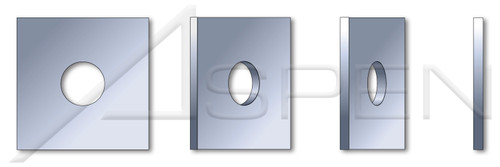

PRODUCT ATTRIBUTES- Category: Square Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: DIN 436
Product UPC Code:
698435246553
- Outside Diameter (Nominal):
- 30mm
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product82/ME356-10.PDF
- Material:
- Steel
- Inside Diameter (Nominal):
- 11mm
- Inside Diameter (Maximum):
- 11.43mm
- Thickness (Nominal):
- 3mm
- Product Class:
- Washers
- System of Measurement:
- Metric
- Order:
- Flat Washers
- Diameter (Nominal):
- M10
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME356-10
- Outside Diameter (Minimum):
- 28.7mm
- Inside Diameter (Minimum):
- 11mm
- Standards and Specifications:
- DIN 436
- Coating Color:
- Clear
- Diameter (Dimension):
- 10mm
- Shop by Material:
- Steel
- Brand:
- Aspen Fasteners
- Shop by System of Measurement:
- Metric
- Thickness (Minimum):
- 2.4mm
- Thickness (Maximum):
- 3.6mm
- Coating:
- Zinc Plated
- Outside Diameter (Maximum):
- 30mm
- Category:
- Square Flat Washers
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME356-10.zip
- Origin:
- Origin Undefined
- POS:
- ME356-10-00075
