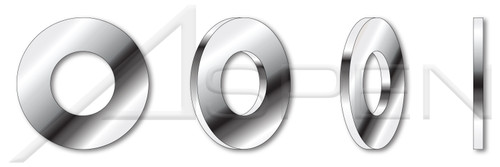

M14 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, A4 Stainless Steel

M14 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, A4 Stainless Steel

PART NUMBER:
ME154-14
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • DIN 125 / ISO 7089 are standard commercial metric flat washers.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M14
  • Diameter (Dimension): 14mm
  • Inside Diameter (Nominal): 15mm
  • Inside Diameter (Minimum): 15mm
  • Inside Diameter (Maximum): 15.27mm
  • Outside Diameter (Nominal): 28mm
  • Outside Diameter (Minimum): 27.48mm
  • Outside Diameter (Maximum): 28mm
  • Thickness (Nominal): 2.5mm
  • Thickness (Minimum): 2.3mm
  • Thickness (Maximum): 2.7mm
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Not Chamfered
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 125 Type A / ISO 7089
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product94/ME154-14.PDF
Material:
Stainless Steel
Outside Diameter (Maximum):
28mm
Category:
Standard Flat Washers
Inside Diameter (Nominal):
15mm
Shop by Material:
Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME154-14
Outside Diameter (Minimum):
27.48mm
System of Measurement:
Metric
Standards and Specifications:
DIN 125 Type A / ISO 7089
Shop by System of Measurement:
Metric
Material Grade:
A4 Stainless Steel
Inside Diameter (Minimum):
15mm
Coating:
Uncoated
Order:
Flat Washers
Thickness (Minimum):
2.3mm
Thickness (Maximum):
2.7mm
Inside Diameter (Maximum):
15.27mm
Product Class:
Washers
Diameter (Dimension):
14mm
Brand:
Aspen Fasteners
Outside Diameter (Nominal):
28mm
Thickness (Nominal):
2.5mm
Diameter (Nominal):
M14
Form and Design:
Not Chamfered
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME154-14.zip
POS:
ME154-14X15X28X25-000600,ME154-14-000075
Print
  • Description
    • DIN 125 / ISO 7089 are standard commercial metric flat washers.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M14
    • Diameter (Dimension): 14mm
    • Inside Diameter (Nominal): 15mm
    • Inside Diameter (Minimum): 15mm
    • Inside Diameter (Maximum): 15.27mm
    • Outside Diameter (Nominal): 28mm
    • Outside Diameter (Minimum): 27.48mm
    • Outside Diameter (Maximum): 28mm
    • Thickness (Nominal): 2.5mm
    • Thickness (Minimum): 2.3mm
    • Thickness (Maximum): 2.7mm
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Not Chamfered
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 125 Type A / ISO 7089
  • 3D Product View
