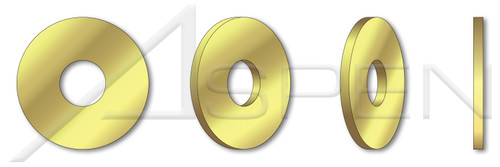

- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
- The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M14
- Diameter (Dimension): 14mm
- Inside Diameter (Nominal): 15mm
- Inside Diameter (Minimum): 15mm
- Inside Diameter (Maximum): 15.27mm
- Outside Diameter (Nominal): 24mm
- Outside Diameter (Minimum): 23.48mm
- Outside Diameter (Maximum): 24mm
- Thickness (Nominal): 2.5mm
- Thickness (Minimum): 2.3mm
- Thickness (Maximum): 2.7mm
PRODUCT ATTRIBUTES- Category: Standard Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: Small Outside Diameter
- Material: Brass
- Coating: Uncoated
- Standards and Specifications: DIN 433 / ISO 7092
Product UPC Code:
692559763217
- Coating:
- Uncoated
- Inside Diameter (Nominal):
- 15mm
- Outside Diameter (Minimum):
- 23.48mm
- Inside Diameter (Minimum):
- 15mm
- Shop by Material:
- Brass
- Order:
- Flat Washers
- Thickness (Minimum):
- 2.3mm
- Diameter (Nominal):
- M14
- Standards and Specifications:
- DIN 433 / ISO 7092
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME350-14
- Shop by System of Measurement:
- Metric
- Thickness (Nominal):
- 2.5mm
- Material:
- Brass
- Form and Design:
- Small Outside Diameter
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product83/ME350-14.PDF
- Product Class:
- Washers
- System of Measurement:
- Metric
- Thickness (Maximum):
- 2.7mm
- Inside Diameter (Maximum):
- 15.27mm
- Category:
- Standard Flat Washers
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME350-14.zip
- Diameter (Dimension):
- 14mm
- Outside Diameter (Nominal):
- 24mm
- Outside Diameter (Maximum):
- 24mm
- Brand:
- Aspen Fasteners
- POS:
- ME350-14-00050
