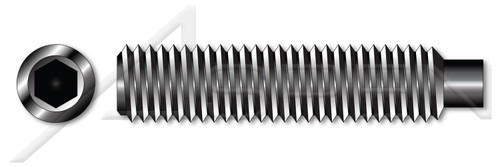

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- An internal hex socket drive is also known as an Allen drive.
- Class 45H steel is an alloy steel, quenched and tempered to Rockwell hardness HRC C45-C53.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M16
- Thread Pitch: 2.0
- Diameter (Dimension): 16mm
- Length (Nominal): 100mm
- Thread Length (Nominal): 100mm
- Drive Recess Size: 8mm
- Drive Recess Depth: 10mm
- Point Length: 8mm
- Point Length (Minimum): 8mm
- Point Length (Maximum): 8.36mm
- Point Width: 12mm
- Point Width (Minimum): 11.57mm
- Point Width (Maximum): 12mm
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Full Dog Point
- Material: Steel
- Material Grade: Class 45H Steel
- Material Processes: Quenched and Tempered
- Coating: Uncoated
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: DIN 915 / ISO 4028
Product UPC Code:
692559471266
- Material Processes:
- Quenched and Tempered
- Brand:
- Aspen Fasteners
- Point Width (Maximum):
- 12mm
- Drive Recess Depth:
- 10mm
- Origin:
- Origin Undefined
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME269-1620X100.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME269-1620X100
- Point Width (Minimum):
- 11.57mm
- Product Class:
- Externally Threaded Fasteners
- Point Length (Maximum):
- 8.36mm
- Coating Color:
- Black
- Diameter (Dimension):
- 16mm
- Diameter (Nominal):
- M16
- Point Width:
- 12mm
- Standards and Specifications:
- DIN 915 / ISO 4028
- Point Length (Minimum):
- 8mm
- Material Grade:
- Class 45H Steel
- Drive Recess Size:
- 8mm
- Thread Direction:
- Right-Hand Thread
- Point:
- Full Dog Point
- Shop by System of Measurement:
- Metric
- Head Style:
- Headless
- Category:
- Set Screws
- Material:
- Steel
- Length (Nominal):
- 100mm
- Point Length:
- 8mm
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product66/ME269-1620X100.PDF
- Shop by Material:
- Steel
- System of Measurement:
- Metric
- Order:
- Machine Thread Fasteners
- Thread Length:
- Full Thread
- Thread Pitch:
- 2.0
- Thread Length (Nominal):
- 100mm
- Drive Style:
- Hex Socket Drive
- Shop by Application:
- Socket Products
- Coating:
- Uncoated
- POS:
- ME269-1620X100-00010
