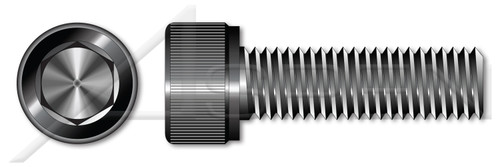

M16-2.0 X 30mm DIN 912 / ISO 4762 and ASTM A574M, Metric, Socket Head Cap Screws, Hex Socket Drive, Full Thread, Class 12.9 Steel, Made in U.S.A.

M16-2.0 X 30mm DIN 912 / ISO 4762 and ASTM A574M, Metric, Socket Head Cap Screws, Hex Socket Drive, Full Thread, Class 12.9 Steel, Made in U.S.A.

PART NUMBER:
ME088-1620X30
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M16
  • Thread Pitch: 2.0
  • Diameter (Dimension): 16mm
  • Diameter (Minimum): 15.73mm
  • Diameter (Maximum): 16mm
  • Length (Nominal): 30mm
  • Thread Length (Nominal): 30mm
  • Drive Recess Size: 14mm
  • Drive Recess Width: 14mm
  • Drive Recess Width (Minimum): 14.03mm
  • Drive Recess Width (Maximum): 14.21mm
  • Drive Recess Depth: 8mm
  • Head Diameter: 24mm
  • Head Diameter (Minimum): 23.67mm
  • Head Diameter (Maximum): 24mm
  • Head Height, Overall: 16mm
  • Head Height, Overall (Minimum): 15.57mm
  • Head Height, Overall (Maximum): 16mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 12.9 Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
  • Standards and Specifications: DIN 912 / ISO 4762 and ASTM A574M
Length (Nominal):
30mm
Shop by System of Measurement:
Metric
Shop by Material:
Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Cylindrical Head
Drive Style:
Hex Socket Drive
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Material:
Steel
Material Grade:
Class 12.9 Steel
Coating:
Uncoated
Origin:
Made in U.S.A.
Standards and Specifications:
ASTM A574M
Diameter (Nominal):
M16
Thread Pitch:
2.0
POS:
ME088-1620X30-000250,ME088-1620X30-000100
Brand:
Aspen Fasteners(r)
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product62/ME088-1620X30.PDF
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME088-1620X30.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME088-1620X30
Head Height, Overall (Maximum):
16mm
Diameter (Dimension):
16mm
Diameter (Minimum):
15.73mm
Thread Length (Nominal):
30mm
Diameter (Maximum):
16mm
Drive Recess Depth:
8mm
Drive Recess Width (Maximum):
14.21mm
Head Diameter:
24mm
Drive Recess Width (Minimum):
14.03mm
Drive Recess Size:
14mm
Standards and Specifications:
DIN 912 / ISO 4762 and ASTM A574M
Head Diameter (Maximum):
24mm
Head Height, Overall:
16mm
Drive Recess Width:
14mm
Head Height, Overall (Minimum):
15.57mm
Head Diameter (Minimum):
23.67mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M16
    • Thread Pitch: 2.0
    • Diameter (Dimension): 16mm
    • Diameter (Minimum): 15.73mm
    • Diameter (Maximum): 16mm
    • Length (Nominal): 30mm
    • Thread Length (Nominal): 30mm
    • Drive Recess Size: 14mm
    • Drive Recess Width: 14mm
    • Drive Recess Width (Minimum): 14.03mm
    • Drive Recess Width (Maximum): 14.21mm
    • Drive Recess Depth: 8mm
    • Head Diameter: 24mm
    • Head Diameter (Minimum): 23.67mm
    • Head Diameter (Maximum): 24mm
    • Head Height, Overall: 16mm
    • Head Height, Overall (Minimum): 15.57mm
    • Head Height, Overall (Maximum): 16mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 12.9 Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
    • Standards and Specifications: DIN 912 / ISO 4762 and ASTM A574M
