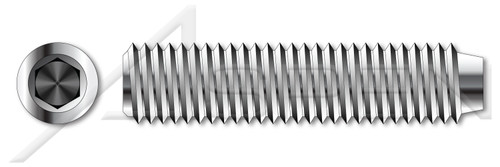

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M2.5
- Thread Pitch: 0.45
- Diameter (Dimension): 2.5mm
- Length (Nominal): 10mm
- Thread Length (Nominal): 10mm
- Drive Recess Size: 1.3mm
- Drive Recess Depth: 2mm
- Point Width: 1.2mm
- Point Width (Minimum): 0.95mm
- Point Width (Maximum): 1.2mm
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Cup Point
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 916 / ISO 4029
Product UPC Code:
698435880528
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product87/ME272-25045X10.PDF
- Length (Nominal):
- 10mm
- Thread Length:
- Full Thread
- Point Width:
- 1.2mm
- Head Style:
- Headless
- Product Class:
- Externally Threaded Fasteners
- Point Width (Minimum):
- 0.95mm
- Origin:
- Origin Undefined
- Thread Length (Nominal):
- 10mm
- Material:
- Stainless Steel
- Drive Recess Size:
- 1.3mm
- Drive Style:
- Hex Socket Drive
- Order:
- Machine Thread Fasteners
- Shop by Application:
- Socket Products
- Diameter (Nominal):
- M2.5
- Coating:
- Uncoated
- Category:
- Set Screws
- Thread Pitch:
- 0.45
- Drive Recess Depth:
- 2mm
- Brand:
- Aspen Fasteners
- Point:
- Cup Point
- Point Width (Maximum):
- 1.2mm
- Shop by Material:
- Stainless Steel
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME272-25045X10
- Shop by System of Measurement:
- Metric
- System of Measurement:
- Metric
- Material Grade:
- A4 Stainless Steel
- Standards and Specifications:
- DIN 916 / ISO 4029
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME272-25045X10.zip
- Thread Direction:
- Right-Hand Thread
- Diameter (Dimension):
- 2.5mm
- POS:
- ME272-25045X10-000500
