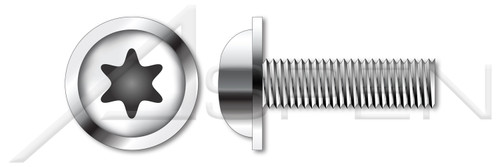

M2.5-0.45 X 4mm ISO 7380-2, Metric, Flanged Button Head Cap Screws, 6Lobe Torx(r) Drive, Full Thread, A2 Stainless Steel

M2.5-0.45 X 4mm ISO 7380-2, Metric, Flanged Button Head Cap Screws, 6Lobe Torx(r) Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME483-25045X4-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M2.5
  • Thread Pitch: 0.45
  • Diameter (Dimension): 2.5mm
  • Length (Nominal): 4mm
  • Thread Length (Nominal): 4mm
  • Drive Recess Size: T8
  • Drive Recess Width: 2.4mm
  • Drive Recess Width (Minimum): 1.52mm
  • Drive Recess Width (Maximum): 1.56mm
  • Drive Recess Depth: 0.8mm
  • Head Height, Overall: 1.43mm
  • Head Height, Overall (Minimum): 1.36mm
  • Head Height, Overall (Maximum): 1.5mm
  • Flange Diameter: 5.5mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Button Head with Flange
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: ISO 7380-2
Product UPC Code:
698435884625
Material Grade:
A2 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Flange Diameter:
5.5mm
Drive Detail:
Torx(r) Generic Alternative
Drive Style:
6Lobe Drive
Head Style:
Button Head with Flange
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Head Height, Overall:
1.5mm
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Product Class:
Externally Threaded Fasteners
Recess Size:
T8
Thread Length:
4mm
Length (Nominal):
4mm
Thread Pitch:
0.45
Diameter (Dimension):
2.5mm
Diameter (Nominal):
M2.5
Standards and Specifications:
ISO 7380-2
Coating:
Uncoated
POS:
ME483-25045X4-001000
Brand:
Aspen Fasteners(r)
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME483-25045X4
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME483-25045X4.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product88/ME483-25045X4.PDF
Drive Recess Width (Maximum):
1.56mm
Head Height, Overall:
1.43mm
Drive Recess Size:
T8
Origin:
Origin Undefined
Head Height, Overall (Maximum):
1.5mm
Thread Length (Nominal):
4mm
Head Height, Overall (Minimum):
1.36mm
Drive Recess Width:
2.4mm
Drive Recess Depth:
0.8mm
Drive Recess Width (Minimum):
1.52mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M2.5
    • Thread Pitch: 0.45
    • Diameter (Dimension): 2.5mm
    • Length (Nominal): 4mm
    • Thread Length (Nominal): 4mm
    • Drive Recess Size: T8
    • Drive Recess Width: 2.4mm
    • Drive Recess Width (Minimum): 1.52mm
    • Drive Recess Width (Maximum): 1.56mm
    • Drive Recess Depth: 0.8mm
    • Head Height, Overall: 1.43mm
    • Head Height, Overall (Minimum): 1.36mm
    • Head Height, Overall (Maximum): 1.5mm
    • Flange Diameter: 5.5mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Button Head with Flange
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: ISO 7380-2
    Product UPC Code:
    698435884625
