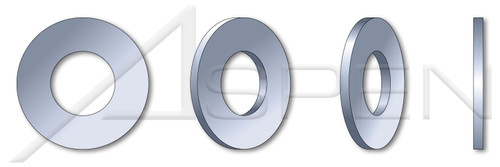

M2.5 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, Steel, Zinc Plated

M2.5 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, Steel, Zinc Plated

PART NUMBER:
ME058-25
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • DIN 125 / ISO 7089 are standard commercial metric flat washers.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M2.5
  • Diameter (Dimension): 2.5mm
  • Inside Diameter (Nominal): 2.7mm
  • Inside Diameter (Minimum): 2.7mm
  • Inside Diameter (Maximum): 2.84mm
  • Outside Diameter (Nominal): 6mm
  • Outside Diameter (Minimum): 5.7mm
  • Outside Diameter (Maximum): 6mm
  • Thickness (Nominal): 0.5mm
  • Thickness (Minimum): 0.45mm
  • Thickness (Maximum): 0.55mm
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Not Chamfered
  • Material: Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Standards and Specifications: DIN 125 Type A / ISO 7089
Coating Color:
Clear
Coating:
Zinc Plated
Thickness (Nominal):
0.5mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME058-25
Diameter (Dimension):
2.5mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product82/ME058-25.PDF
Thickness (Maximum):
0.55mm
Inside Diameter (Minimum):
2.7mm
Category:
Standard Flat Washers
Outside Diameter (Nominal):
6mm
Outside Diameter (Maximum):
6mm
Order:
Flat Washers
Product Class:
Washers
Diameter (Nominal):
M2.5
Shop by System of Measurement:
Metric
Outside Diameter (Minimum):
5.7mm
Shop by Material:
Steel
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME058-25.zip
Form and Design:
Not Chamfered
Inside Diameter (Maximum):
2.84mm
System of Measurement:
Metric
Brand:
Aspen Fasteners
Thickness (Minimum):
0.45mm
Material:
Steel
Standards and Specifications:
DIN 125 Type A / ISO 7089
Inside Diameter (Nominal):
2.7mm
POS:
ME058-25-04500,ME058-25-030000,ME058-25-010000
Print
  • Description
    • DIN 125 / ISO 7089 are standard commercial metric flat washers.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M2.5
    • Diameter (Dimension): 2.5mm
    • Inside Diameter (Nominal): 2.7mm
    • Inside Diameter (Minimum): 2.7mm
    • Inside Diameter (Maximum): 2.84mm
    • Outside Diameter (Nominal): 6mm
    • Outside Diameter (Minimum): 5.7mm
    • Outside Diameter (Maximum): 6mm
    • Thickness (Nominal): 0.5mm
    • Thickness (Minimum): 0.45mm
    • Thickness (Maximum): 0.55mm
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Not Chamfered
    • Material: Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Standards and Specifications: DIN 125 Type A / ISO 7089
  • 3D Product View
