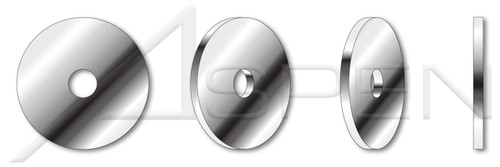

M2.5 DIN 9021 / ISO 7093, Metric, Fender Washers, A2 Stainless Steel

M2.5 DIN 9021 / ISO 7093, Metric, Fender Washers, A2 Stainless Steel

PART NUMBER:
ME380-25
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Fender washers have a particularly large outside diameter in relation to the center hole.
  • Fender washers are sometime referred to as Penny Washers.
  • Use when a large bearing surface is required.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M2.5
  • Diameter (Dimension): 2.5mm
  • Inside Diameter (Nominal): 2.7mm
  • Inside Diameter (Minimum): 2.7mm
  • Inside Diameter (Maximum): 2.84mm
  • Outside Diameter (Nominal): 8mm
  • Outside Diameter (Minimum): 7.64mm
  • Outside Diameter (Maximum): 8mm
  • Thickness (Nominal): 0.8mm
  • Thickness (Minimum): 0.7mm
  • Thickness (Maximum): 0.9mm
PRODUCT ATTRIBUTES
  • Category: Fender Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: OD 3.0 X Diameter
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 9021 / ISO 7093
Coating:
Uncoated
Diameter (Dimension):
2.5mm
Category:
Fender Washers
Outside Diameter (Nominal):
8mm
Product Class:
Washers
Brand:
Aspen Fasteners
Thickness (Minimum):
0.7mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME380-25.zip
Form and Design:
OD 3.0 X Diameter
Outside Diameter (Minimum):
7.64mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product83/ME380-25.PDF
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME380-25
Standards and Specifications:
DIN 9021 / ISO 7093
Inside Diameter (Nominal):
2.7mm
System of Measurement:
Metric
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Thickness (Maximum):
0.9mm
Diameter (Nominal):
M2.5
Inside Diameter (Maximum):
2.84mm
Material:
Stainless Steel
Order:
Flat Washers
Thickness (Nominal):
0.8mm
Inside Diameter (Minimum):
2.7mm
Outside Diameter (Maximum):
8mm
Material Grade:
A2 Stainless Steel
POS:
ME380-25-03600,ME380-25X27X8X08-012000
Print
  • Description
    • Fender washers have a particularly large outside diameter in relation to the center hole.
    • Fender washers are sometime referred to as Penny Washers.
    • Use when a large bearing surface is required.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M2.5
    • Diameter (Dimension): 2.5mm
    • Inside Diameter (Nominal): 2.7mm
    • Inside Diameter (Minimum): 2.7mm
    • Inside Diameter (Maximum): 2.84mm
    • Outside Diameter (Nominal): 8mm
    • Outside Diameter (Minimum): 7.64mm
    • Outside Diameter (Maximum): 8mm
    • Thickness (Nominal): 0.8mm
    • Thickness (Minimum): 0.7mm
    • Thickness (Maximum): 0.9mm
    PRODUCT ATTRIBUTES
    • Category: Fender Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: OD 3.0 X Diameter
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 9021 / ISO 7093
