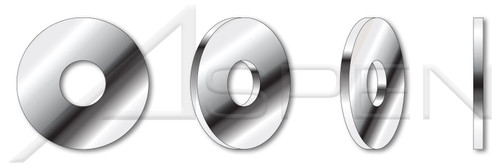

M2 DIN 433 / ISO 7092, Metric, Flat Washers, Small Outside Diameter, A2 Stainless Steel

M2 DIN 433 / ISO 7092, Metric, Flat Washers, Small Outside Diameter, A2 Stainless Steel

PART NUMBER:
ME351-2
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M2
  • Diameter (Dimension): 2mm
  • Inside Diameter (Nominal): 2.2mm
  • Inside Diameter (Minimum): 2.2mm
  • Inside Diameter (Maximum): 2.34mm
  • Outside Diameter (Nominal): 4.5mm
  • Outside Diameter (Minimum): 4.2mm
  • Outside Diameter (Maximum): 4.5mm
  • Thickness (Nominal): 0.3mm
  • Thickness (Minimum): 0.25mm
  • Thickness (Maximum): 0.35mm
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Small Outside Diameter
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 433 / ISO 7092
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME351-2
Thickness (Nominal):
0.3mm
Thickness (Minimum):
0.25mm
Outside Diameter (Maximum):
4.5mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME351-2.zip
Shop by Material:
Stainless Steel
Inside Diameter (Nominal):
2.2mm
Thickness (Maximum):
0.35mm
Standards and Specifications:
DIN 433 / ISO 7092
Form and Design:
Small Outside Diameter
Diameter (Nominal):
M2
Coating:
Uncoated
Inside Diameter (Minimum):
2.2mm
Category:
Standard Flat Washers
Product Class:
Washers
Material:
Stainless Steel
Outside Diameter (Minimum):
4.2mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product83/ME351-2.PDF
Order:
Flat Washers
Shop by System of Measurement:
Metric
Material Grade:
A2 Stainless Steel
Brand:
Aspen Fasteners
Outside Diameter (Nominal):
4.5mm
Inside Diameter (Maximum):
2.34mm
Diameter (Dimension):
2mm
System of Measurement:
Metric
POS:
ME351-2X22X45X03-016000,ME351-2-04400
Print
  • Description
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M2
    • Diameter (Dimension): 2mm
    • Inside Diameter (Nominal): 2.2mm
    • Inside Diameter (Minimum): 2.2mm
    • Inside Diameter (Maximum): 2.34mm
    • Outside Diameter (Nominal): 4.5mm
    • Outside Diameter (Minimum): 4.2mm
    • Outside Diameter (Maximum): 4.5mm
    • Thickness (Nominal): 0.3mm
    • Thickness (Minimum): 0.25mm
    • Thickness (Maximum): 0.35mm
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Small Outside Diameter
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 433 / ISO 7092
  • 3D Product View

Contact us for availability information on part number ME351-2. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
