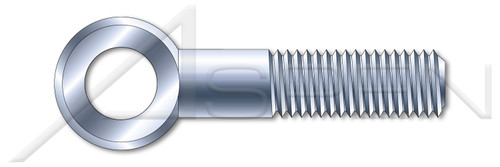

- Precision swing eye bolts are driveless fasteners with a hole in the head.
- Precision machined unthreaded round hole called the "eye" allows for pin or bearing to be inserted.
- Can be used as a hinge point.
- Class 4.6 steel is a low or medium carbon steel with a minimum tensile strength of 400N/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M20
- Thread Pitch: 2.5
- Diameter (Dimension): 20mm
- Length (Nominal): 300mm
- Thread Length (Nominal): 65mm
- Inside Diameter (Nominal): 18mm
- Inside Diameter (Minimum): 18mm
- Inside Diameter (Maximum): 18.043mm
- Head Diameter: 40mm
- Head Diameter (Minimum): 39.38mm
- Head Diameter (Maximum): 40mm
- Head Height, Overall: 40mm
- Head Height, Overall (Minimum): 39.38mm
- Head Height, Overall (Maximum): 40mm
- Head Width (Minimum): 21.79mm
- Head Width (Maximum): 22mm
PRODUCT ATTRIBUTES- Category: Eye Bolts (Precision Swing)
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Spherical Eye Head
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.6 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: DIN 444 Type B
Product UPC Code:
698435919037
- Category:
- Eye Bolts (Precision Swing)
- System of Measurement:
- Metric
- Thread Length:
- Part Thread
- Coating Color:
- Clear
- Head Width (Minimum):
- 21.79mm
- Inside Diameter (Minimum):
- 18mm
- Head Height, Overall:
- 40mm
- Diameter (Nominal):
- M20
- Head Diameter (Maximum):
- 40mm
- Thread Pitch:
- 2.5
- Order:
- Machine Thread Fasteners
- Head Width (Maximum):
- 22mm
- Thread Direction:
- Right-Hand Thread
- Shop by Material:
- Steel
- Diameter (Dimension):
- 20mm
- Head Diameter (Minimum):
- 39.38mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME029-2025X300
- Material Grade:
- Class 4.6 Steel
- Length (Nominal):
- 300mm
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- DIN 444 Type B
- Inside Diameter (Maximum):
- 18.043mm
- Thread Length (Nominal):
- 65mm
- Shop by System of Measurement:
- Metric
- Inside Diameter (Nominal):
- 18mm
- Brand:
- Aspen Fasteners
- Head Height, Overall (Maximum):
- 40mm
- Material:
- Steel
- Head Style:
- Spherical Eye Head
- Head Height, Overall (Minimum):
- 39.38mm
- Head Diameter:
- 40mm
- Coating:
- Zinc Plated
- POS:
- ME029-2025X300-000004
- Origin:
- Origin Undefined
